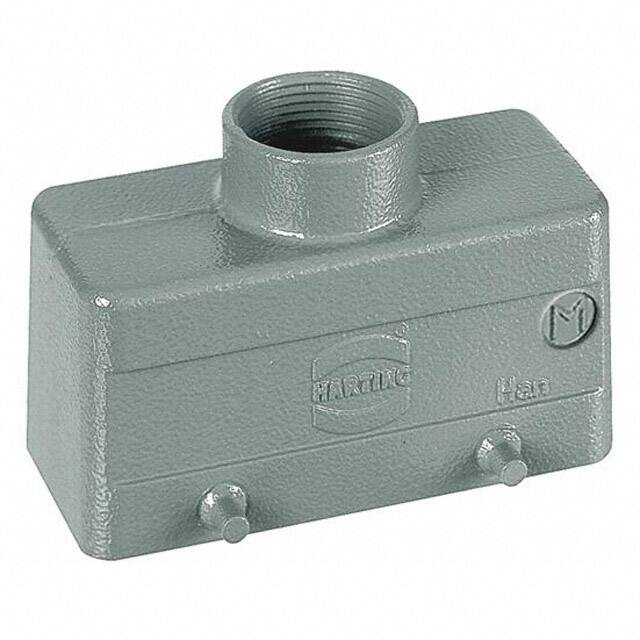

19300101421 Harting Han B hood, top entry, size 10B, with M25 cable entry and double locking lever. Rated IP65/66/67.
Mfr Part #:

19300101421

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han B hood, top entry, size 10B, with M25 cable entry and double locking lever. Rated IP65/66/67.
✓ Total Stock: 2 pcs

19300101421 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19300101421 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19300101421 Description

Short technical summary and product information.

The Harting 19300101421 is a Han B series hood designed for heavy-duty industrial connector applications. This top-entry hood features a size 10B form factor with a single M25 cable entry, making it suitable for cable management in control cabinets and machinery.



Constructed from die-cast aluminum with a powder-coated gray finish, the hood offers robust mechanical protection. It is equipped with a double locking lever mechanism for secure mating. The ingress protection ratings of IP65, IP66, and IP67 ensure reliable performance in dusty and wet environments.



The hood is rated for 500 mating cycles and operates over a temperature range of -40°C to +125°C. It carries UL 50/50E type ratings of 4, 4X, and 12, and is approved to CE and DNV GL standards. Compliance with RoHS, ELV, China RoHS, REACH, and California Proposition 65 is verified.

19300101421 Quick Information

Product Type: Hood
Series: Han B
Canonical Name: Han 10B-HTE-LC-4 Pegs-M25
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19300101421 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

19300101421 Features

  • Top entry hood for size 10B connectors.
  • Single M25 cable entry.
  • Double locking lever for secure mating.
  • IP65, IP66, and IP67 rated.
  • Die-cast aluminum with powder coating.

19300101421 Applications

  • Used in industrial control cabinets.
  • Suitable for machinery and equipment.
  • Ideal for harsh environment connections.
  • Common in railway vehicle applications.

19300101421 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65, IP66, and IP67.

What is the operating temperature range?

-40°C to +125°C.

How many mating cycles is this hood rated for?

500 mating cycles.

What material is the housing made of?

Aluminum, die cast with powder coated finish.

What is the cable entry thread size?

M25.

Is this hood RoHS compliant?

Yes, RoHS compliant.
