| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Material Flammability Class (locking levers) | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

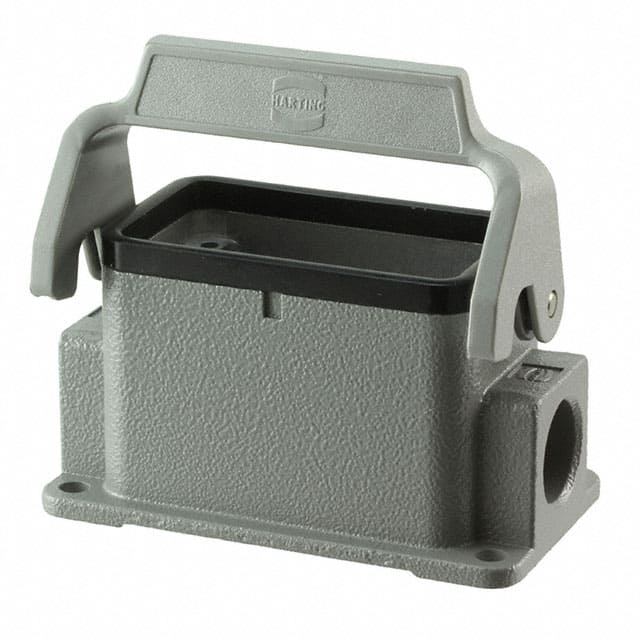

The Harting 19300101250 is a Han 10B-HSM1-LC-SL-M20 surface mount housing designed for industrial connector applications. It features a side entry configuration with a single M20 cable entry, making it suitable for space-constrained installations where cable access from the side is required.
This housing is constructed from die-cast aluminum with a powder-coated finish in RAL 7037 dust gray. The seal is made of NBR, and the locking levers are polycarbonate with stainless steel components, providing a single locking lever mechanism with Han-Easy Lock functionality. The locking levers have a UL 94 V-0 flammability rating.
With an IP65 degree of protection, the housing is dust-tight and water-resistant, suitable for demanding industrial environments. It operates over a temperature range of -40°C to +125°C and is rated for at least 500 mating cycles. The housing is RoHS, REACH, ELV, and China RoHS compliant.
IP65 - Dust Tight, Water Resistant.
-40°C to 125°C.
1 cable entry with M20 thread.
Aluminum, die cast with powder coated finish.
Single locking lever with Han-Easy Lock.
At least 500 mating cycles.
