| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Fire Protection Railway | |
| Flammability | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Lever Material | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Proposition 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| UL 50 / UL 50E Type Rating | |
| Width |

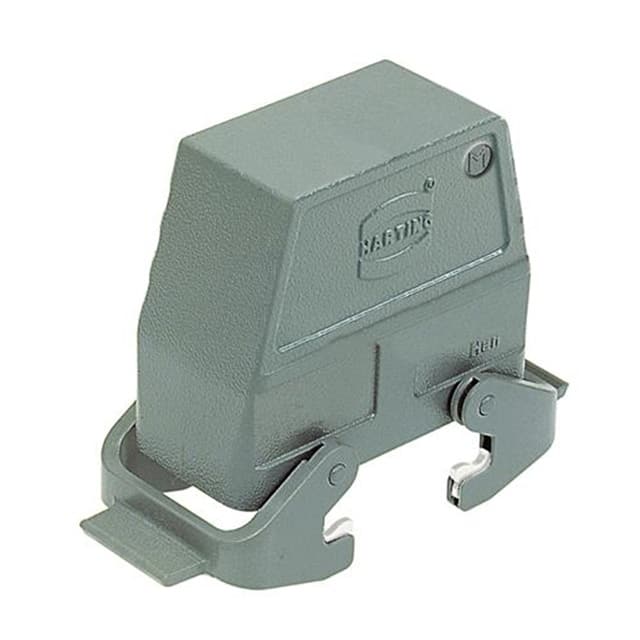

The Harting 19300100537 is a heavy duty connector hood from the Han B series. It features a side entry design with a single M32 cable entry and double locking lever mechanism with Han-Easy Lock. The hood is size 10B and is constructed from aluminium die-cast with a powder-coated finish in RAL 7037 dust grey. The locking levers are made of polycarbonate (UL 94 V-0) and stainless steel. It provides ingress protection ratings of IP65, IP66, and IP67, and is rated for UL 50/50E Type 4, 4X, and 12. The operating temperature range is -40 to 125°C with a minimum of 500 mating cycles. This hood is suitable for industrial connector applications requiring robust environmental sealing. It is RoHS, REACH, and ELV compliant, and meets China RoHS and fire protection standards for railway (EN 45545-2). The product is packaged individually.
IP65, IP66, and IP67.
-40 to 125°C.
Double locking lever with Han-Easy Lock.
Aluminium die-cast with powder coating.
M32.
Size 10B.
Yes, RoHS compliant.
