| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Color (Hood/Housing) | |
| Connector Type | |
| Country of Origin | |
| Degree of Protection (IEC 60529) | |
| ELV | |
| Fire Protection Railway | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material (Hood/Housing) | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Surface (Hood/Housing) | |
| Thread Size | |
| Type Rating (UL 50/50E) | |
| Width |

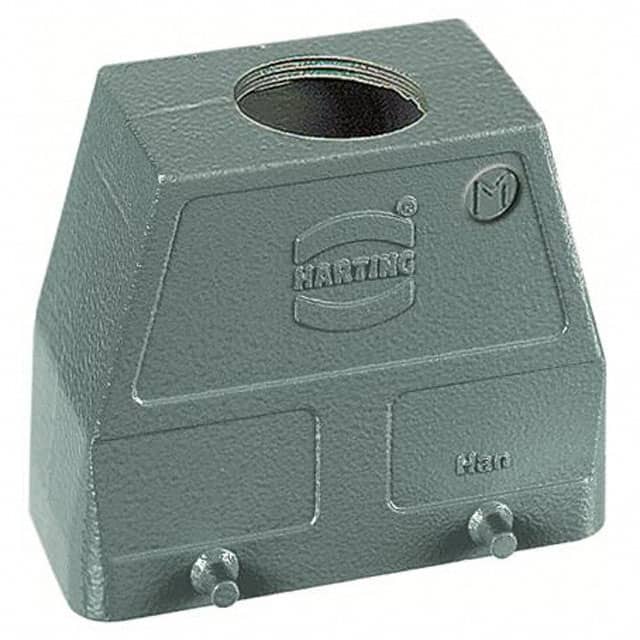

This Harting Han B hood (part number 19300100427) is a top-entry heavy duty connector hood designed for industrial applications. It is part of the Han B series and features a size 10B housing with a single M32 cable entry. The hood uses a double locking lever mechanism for secure mating with compatible bases.
The housing is constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). It provides ingress protection ratings of IP65, IP66, and IP67, and meets UL 50/50E type ratings 4, 4X, and 12. The operating temperature range is -40°C to 125°C, with a minimum of 500 mating cycles.
This hood is suitable for harsh environments and complies with RoHS, REACH, ELV, China RoHS, and California Proposition 65 (not contained). It also meets EN 45545-2 fire protection requirements for railway vehicles (R1 and R7, HL 1-3). The net weight is 157 g, and it is manufactured in Germany.
IP65, IP66, and IP67.
-40°C to 125°C.
Aluminum die-cast with powder-coated finish.
Double locking lever.
M32.
≥500.
Yes.
