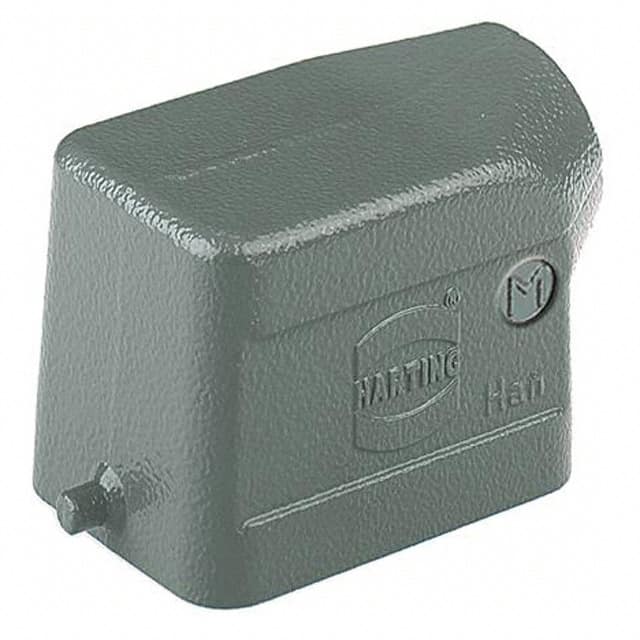

19300061540 Harting Han B hood with side entry, size 6B, M20 cable entry. Rated IP65/66/67, aluminum die-cast housing with powder coating.
Mfr Part #:

19300061540

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han B hood with side entry, size 6B, M20 cable entry. Rated IP65/66/67, aluminum die-cast housing with powder coating.
✓ Total Stock: 4 pcs

19300061540 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19300061540 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
Prop 65
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19300061540 Description

Short technical summary and product information.

The Harting 19300061540 is a Han B hood designed for heavy-duty connector applications. It features a side entry configuration with a single M20 cable entry, making it suitable for various industrial environments. The hood is rated IP65, IP66, and IP67, providing protection against dust and water ingress.



Constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey), this hood offers durability and corrosion resistance. It incorporates a single locking lever mechanism for secure mating and is rated for at least 500 mating cycles. The operating temperature range is -40°C to 125°C.



This hood is part of the Han B series and is designed for size 6B inserts. It complies with UL 50/50E enclosure types 4, 4X, and 12, and meets EN 45545-2 fire protection requirements for railway vehicles. Approvals include CE and DNV GL.



The hood has a net weight of 21.4 g and is manufactured in Germany. It is RoHS3 compliant, REACH unaffected, and free from SVHC and Proposition 65 substances.

19300061540 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han B
Canonical Name: Han B Hood Side Entry LC 2pegs M20
Subcategory: Side Entry Hood

19300061540 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

19300061540 Features

  • Side entry hood for size 6B connectors.
  • IP65, IP66, IP67 rated protection.
  • Aluminum die-cast with powder coating.
  • Single locking lever for secure mating.
  • Operating temperature -40°C to 125°C.

19300061540 Applications

  • Used in industrial connector systems.
  • Suitable for harsh environments.
  • Ideal for railway applications (EN 45545-2).
  • Compatible with Han B inserts.

19300061540 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65, IP66, IP67.

What is the thread size for the cable entry?

M20.

What is the housing material and finish?

Aluminum, die cast with powder coating, color RAL 7037 (dust grey).

What is the operating temperature range?

-40°C to 125°C.

What locking mechanism does it use?

Single locking lever.

How many mating cycles is it rated for?

≥500 cycles.

What environmental and safety approvals does it have?

CE, DNV GL, UL 1977, CSA C22.2, EN 45545-2 for railway fire protection.
