| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| CSA File Number | |
| Cable Entry Type | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Failure Rate | |
| Fire Protection Standard | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Number of Cable Entries | |
| Operating Temperature | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| UL Type Rating | |
| Weight | |
| Width | |
| ul_file_number |

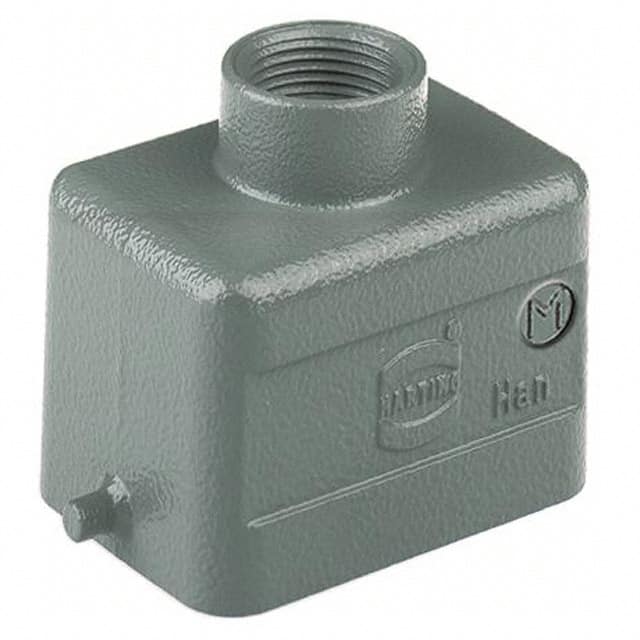

The Harting 19300061440 is a heavy-duty connector hood from the Han B series. It features a size 6B top entry design with a single M20 cable entry. The housing is made of aluminum die-cast with a powder-coated gray finish (RAL 7037). It provides ingress protection ratings of IP65, IP66, and IP67, and UL Type ratings 4, 4X, and 12. The locking mechanism uses a single locking lever with a clip on the base bottom. It is designed for industrial connector applications requiring robust environmental sealing. The hood meets fire protection standard EN 45545-2 for railway vehicles. It is RoHS, REACH, and ELV compliant. Operating temperature range is -40°C to +125°C with a minimum of 500 mating cycles. Weight is 102.8 g. Dimensions: 60.00mm length, 43.00mm width, 53.50mm height.
IP65, IP66, IP67
-40°C to +125°C
Aluminum die-cast with powder coating
Single locking lever with locking clip on base bottom
M20
4, 4X, 12
Yes
