| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Features | |
| Fire Protection Railway Vehicles | |
| Flammability Class (locking levers) | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Mating Cycles | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

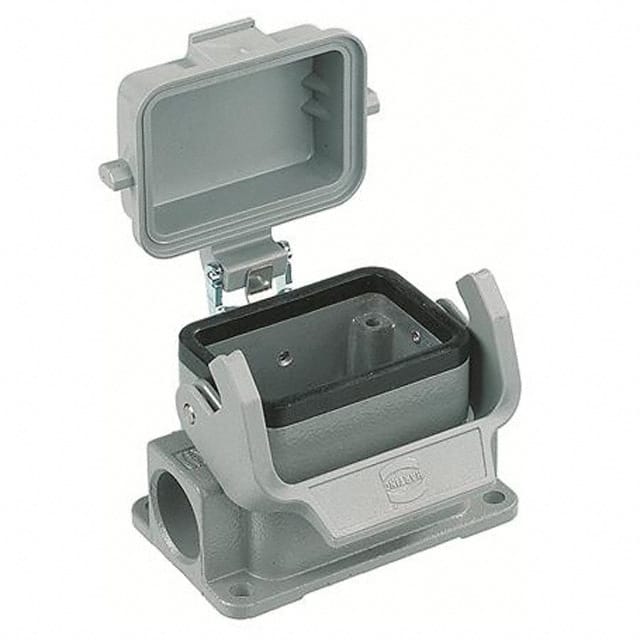

The Harting 19300061295 is a Han B series heavy duty connector base designed for surface mounting. It features a size 6B housing with side cable entry and two M20 threaded openings. The die-cast aluminum housing is powder-coated in gray (RAL 7037) for durability and corrosion resistance. A single locking lever mechanism provides secure mating, and the integrated thermo-plastic cover protects the interior.
Key specifications include an IP65 degree of protection per IEC 60529, an operating temperature range of -40°C to +125°C, and a minimum of 500 mating cycles. The seal is made of NBR rubber, and the locking levers use polycarbonate with stainless steel components. The locking levers are rated V-0 per UL 94.
This housing is suitable for industrial connector applications requiring robust protection against dust and water ingress. It is RoHS compliant, ELV compliant, and meets China RoHS standards.
IP65 per IEC 60529, providing dust tight and water resistant protection.
-40°C to +125°C.
Two M20 cable entries.
Die-cast aluminum with a powder-coated finish in gray (RAL 7037).
Single locking lever (Han-Easy Lock compatible).
≥500 mating cycles.
Yes, RoHS3 compliant.
