| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| California Proposition 65 | |
| Connector Type | |
| Features | |
| Fire Protection on Railway Vehicles | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Material Flammability Class (locking levers) | |
| Mating Cycles | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

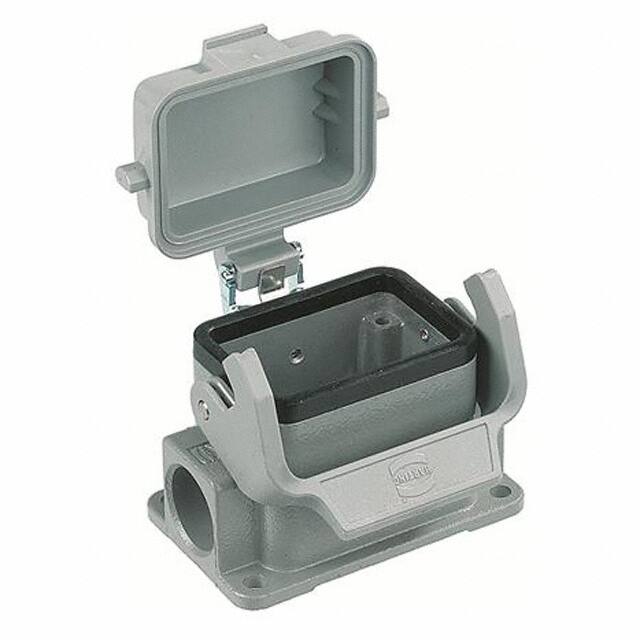

The Harting 19300061255 is a Han B series heavy duty connector base housing designed for industrial applications. It features a side entry configuration with a single M20 cable entry, suitable for size 6B connectors. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 gray. It includes a thermoplastic cover and a single locking lever with Han-Easy Lock® for secure mating. The housing provides IP65 protection against dust and water ingress, and operates over a temperature range of -40°C to 125°C. It is rated for at least 500 mating cycles. The locking levers are made of polycarbonate with stainless steel components and have a flammability rating of V-0. The seal is made of NBR. This base housing is designed for surface mounting and is part of the Han B series, widely used in industrial connector systems. It complies with RoHS, REACH, and other environmental standards. The product is supplied individually packaged.
Size 6B.
1x M20 cable entry.
IP65 - Dust Tight, Water Resistant.
-40°C to 125°C.
Aluminum, Die Cast with powder coating.
≥500 mating cycles.
Yes, RoHS3 compliant.
