| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,031 pcs
|
6031 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Coupling Nut Material | |
| Current Rating | |
| Durability | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Insulator Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Voltage (Nominal @ AC) | |
| Operating Voltage (Nominal @ DC) | |
| Salt Spray | |
| Sealing Grommet Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shock | |
| Type | |
| Vibration |

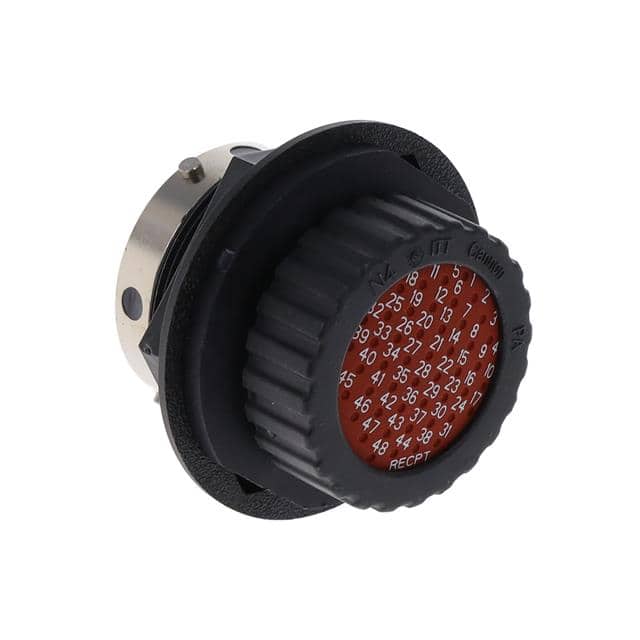

The ITT Cannon 192900-0437 is a receptacle housing from the Trident Neptune series, designed for panel mount applications with a bulkhead front side nut. It accommodates 48 signal contacts (ordered separately) and uses a detent lock fastening system for secure mating.
Key specifications include an operating voltage of 48 Vac and 60 Vdc, a maximum current rating of 16 A, and an operating temperature range of -55°C to +105°C. The housing is rated IP67 for dust tight and waterproof protection, and it withstands 500 mating cycles, 48 hours of salt spray, vibration up to 10 g's, and shock up to 40 g's.
Mechanically, the shell is made of polyamide (nylon) with a black nylon insulator, a nickel plated copper alloy coupling nut, and a silicone rubber sealing grommet. The shell size is 24-0048, and the housing is unshielded. It is packaged as a single pack and is compatible with crimp, solder, and solder cup contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $45.71 | $45.71 |
| 10+ | $38.85 | $38.85 |
| 25+ | $36.42 | $36.42 |
| 50+ | $34.68 | $34.68 |
| 100+ | $33.03 | $33.03 |
| 250+ | $30.96 | $30.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
Up to 16 A.
48 Vac and 60 Vdc.
Panel mount with bulkhead front side nut.
IP67 - dust tight and waterproof.
-55°C to +105°C.
Crimp, solder, and solder cup contacts.
