| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,483 pcs
|
5483 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mating Part Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

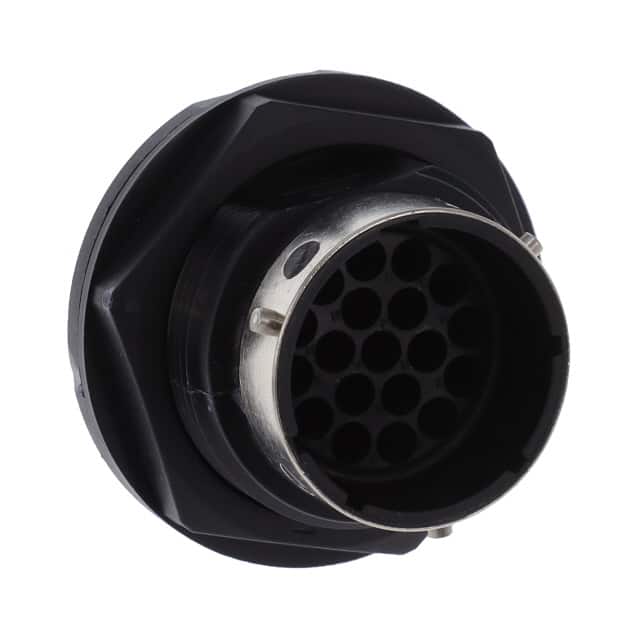

The ITT Cannon 192900-0353 is a circular connector receptacle housing designed for use with male pins. It accepts crimp, solder, and solder cup contacts, providing flexibility in termination methods.
The housing offers 19 positions and is rated IP67 for dust tight and waterproof protection, making it suitable for harsh environments. It is unshielded and features a detent lock fastening system for secure mating. The shell is made of polyamide (nylon) with a black finish and meets UL94 V-0 flammability requirements.
Designed for panel mount, it uses a bulkhead front side nut mounting feature. The shell size is 16-0019.
The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for applications requiring reliable circular connections in demanding conditions.
19 positions.
Panel mount with bulkhead front side nut and detent lock fastening.
IP67 - dust tight and waterproof.
Polyamide (PA) nylon with UL94 V-0 flammability rating.
Crimp, solder, and solder cup contacts.
No, it is unshielded.
Black.
