| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,266 pcs
|
6266 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination Style | |
| Type |

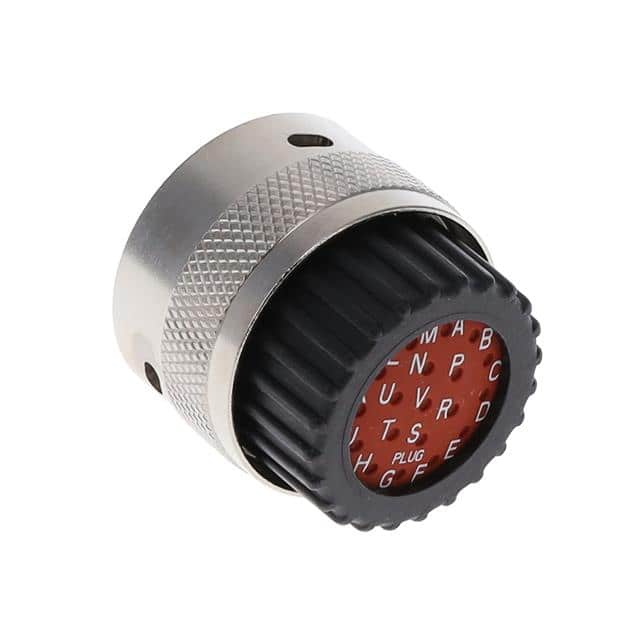

The ITT Cannon 192900-0057 is a circular connector plug housing designed for use with female socket contacts. It features 19 positions and a shell size of 16-0019. The housing is made of polyamide (PA) nylon with a black and silver color scheme. It is unshielded and has a detent lock fastening mechanism for secure mating. The mounting type is free hanging (in-line), allowing for flexible cable assembly. The housing is rated IP67, providing dust tight and waterproof protection, suitable for harsh environments. The material flammability rating is UL94 V-0. It includes a coupling nut feature for additional strain relief. This housing accepts crimp and solder cup contacts, offering versatility in termination methods.
19 positions.
Free hanging (in-line).
Detent lock.
IP67, dust tight and waterproof.
UL94 V-0.
Crimp and solder cup contacts.
Yes, it includes a coupling nut.
