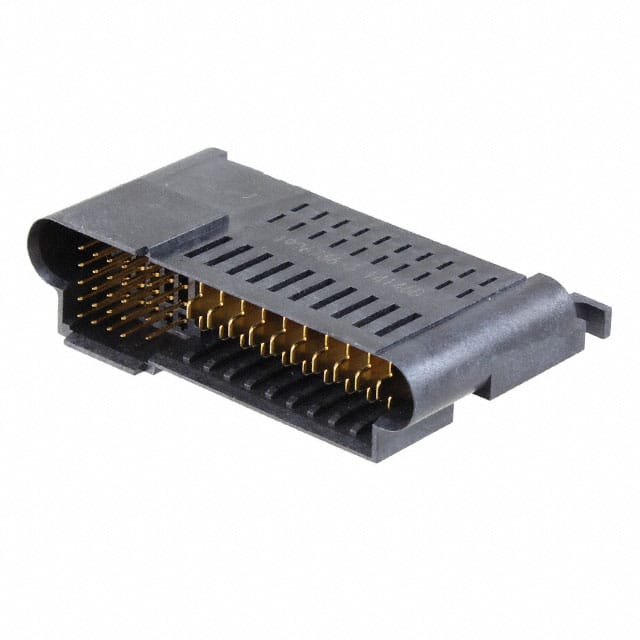

1926736-3 TE Connectivity 1926736-3 is a 35-position header connector with male pins and blades, featuring a 2.00mm pitch and press-fit termination. It is designed for board edge, through hole, right angle mounting with gold contact finish.
Mfr Part #:

1926736-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1926736-3 is a 35-position header connector with male pins and blades, featuring a 2.00mm pitch and press-fit termination. It is designed for board edge, through hole, right angle mounting with gold contact finish.
✓ Total Stock: 224 pcs
$ Price Range: $13.70 - $20.32

1926736-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
224 pcs
On Request
224 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1926736-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Pitch
Tape & Reel
Termination
Termination Style
View Similar Products (0)

1926736-3 Description

Short technical summary and product information.

The TE Connectivity 1926736-3 is a specialized backplane header connector designed for high-density applications. It features 35 positions with a 2.00mm pitch, configured as 25 signal and 10 power contacts. The connector uses male pins and blades with a gold contact finish of 30.0µin (0.76µm) for reliable conductivity. The housing is black and includes a mating guide for alignment. Termination is via press-fit, suitable for board edge, through hole, and right angle mounting. This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in backplane and midplane interconnect systems requiring a mix of signal and power delivery.

1926736-3 Quick Information

Product Type: Backplane Header Connector
Canonical Name: TE Connectivity 1926736-3 Header, Male Pins and Blades, 35 Position, 2.00mm Pitch, Board Edge/Through Hole/Right Angle, Press-Fit
Subcategory: Specialized

1926736-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1926736-3 Estimated Pricing

Qty Low High
1+ $20.32 $20.32
10+ $17.61 $17.61
28+ $16.70 $16.70
56+ $16.45 $16.45
112+ $14.60 $14.60
252+ $13.70 $13.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

1926736-3 Features

  • 35 positions with 2.00mm pitch.
  • 25 signal and 10 power contacts.
  • Gold contact finish of 30.0µin.
  • Press-fit termination for reliable connection.
  • Includes mating guide for alignment.

1926736-3 Applications

  • Ideal for backplane interconnect systems.
  • Suitable for mixed signal and power applications.
  • Used in board edge mounting configurations.
  • Press-fit termination for high-density designs.

1926736-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1926736-3 connector have?

35 positions.

What is the pitch of this connector?

2.00mm (0.079 inches).

What mounting options are available?

Board edge, through hole, and right angle mounting.

What is the contact finish?

Gold with 30.0µin (0.76µm) thickness.

What is the termination style?

Press-fit.

Does the connector have a mating guide?

Yes, it includes a mating guide.

What is the contact layout?

25 signal and 10 power contacts.
