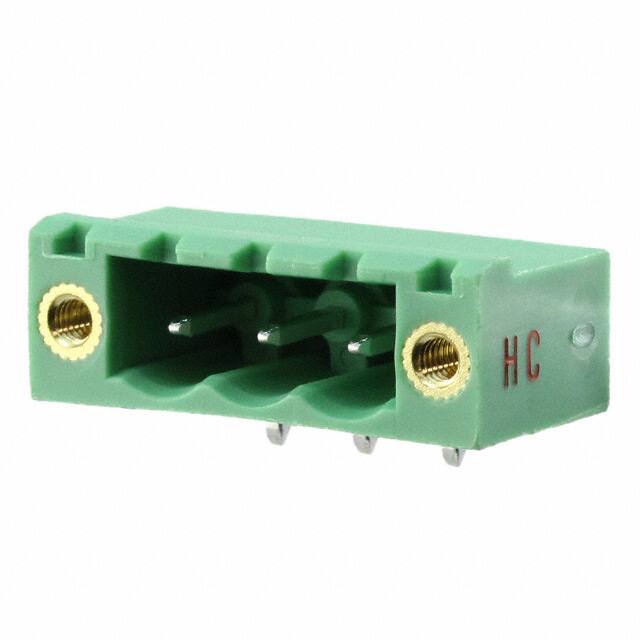

The Phoenix Contact 1923982 is a 3-position terminal block header designed for wire-to-board connections. It features a shrouded (4 side) design with male pins and a right angle orientation, making it suitable for compact layouts where space is limited.
Key specifications include a 5.00mm pitch, 16A current rating, and 300V voltage rating. The header uses through hole mounting with solder termination and tin-plated contacts for reliable conductivity.
A mating and mounting flange is included for secure locking with the corresponding plug. The green housing provides visual identification for power or signal distribution in industrial control systems.
This header is compatible with Phoenix Contact's pluggable terminal block systems and is commonly used in PLC, I/O module, and power distribution applications.
3 positions per level, 1 level (3 total).
5.00mm (0.197 inches).
16A.
300V.
Through hole.
Tin.
Green.
