19200031440 HARTING Han A hood, top entry, size 3A, with M20 cable entry and single locking lever. Zinc die-cast housing with powder-coated finish.
Mfr Part #:

19200031440

Available from 1 distributors
Mfr Name: Harting
Harting
HARTING Han A hood, top entry, size 3A, with M20 cable entry and single locking lever. Zinc die-cast housing with powder-coated finish.
✓ Total Stock: 1 pcs

19200031440 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19200031440 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
Prop 65
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19200031440 Description

Short technical summary and product information.

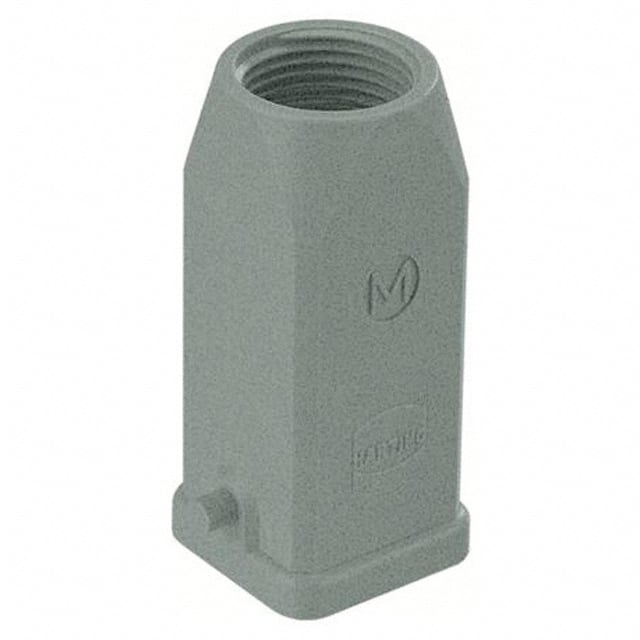

The HARTING 19200031440 is a Han A series hood designed for top entry cable management in heavy-duty industrial connector systems. It features a size 3A form factor with a single M20 cable entry and a single locking lever for secure mating.



The housing is constructed from zinc die-cast material with a powder-coated finish in RAL 7037 (dust grey). The hood provides IP44 protection as standard, and can achieve IP65 or IP67 when used with a seal screw (sold separately). It is rated for operating temperatures from -40°C to +125°C.



This hood is part of the Han A family, suitable for standard industrial applications requiring reliable and durable connector interfaces. The product is RoHS, REACH, ELV, and China RoHS compliant, and meets fire protection requirements for railway vehicles per EN 45545-2.

19200031440 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han A
Canonical Name: Han A Hood Top Entry 2 Pegs M20
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19200031440 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Annex XVII, XIV, SVHC substances not contained

19200031440 Features

  • Han A hood with top entry design.
  • Single M20 cable entry for size 3A.
  • Single locking lever for secure mating.
  • Zinc die-cast housing with powder-coated finish.
  • IP44 protection; IP65/IP67 with seal screw.

19200031440 Applications

  • Standard hood for industrial connector applications.
  • Suitable for heavy-duty machinery and control systems.
  • Use in environments requiring IP44 or higher protection.
  • Compatible with Han A series housings and inserts.

19200031440 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

The hood is rated IP44 as standard. With a seal screw (sold separately), it achieves IP65 and IP67.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What material is the housing made of?

The housing is zinc die-cast with a powder-coated finish in RAL 7037 (dust grey).

What locking mechanism does this hood use?

It uses a single locking lever with a locking clip on the base bottom.

What is the thread size of the cable entry?

The cable entry thread size is M20.
