| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Thread Size | |
| Connector Type | |
| Failure Rate | |
| Fire Protection | |
| Flammability Rating | |
| Height | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Number of Cable Entries | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Quantity | |
| Prop 65 | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Thread Size | |
| Weight | |
| Width |

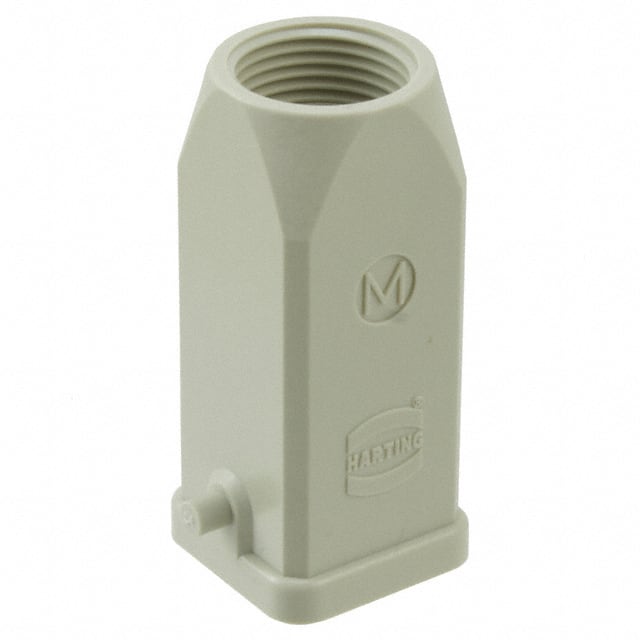

The Harting 19200030420 is a Han A series hood designed for heavy-duty connector applications. It features a top entry configuration with a single M20 cable entry and a single locking lever for secure closure. The housing is made of polycarbonate (PC) in RAL 7032 pebble grey, providing a robust and lightweight enclosure.
This hood is rated IP44 for protection against solid objects and splashing water, and can achieve IP65/IP67 when used with a seal screw. It operates over a temperature range of -40°C to +125°C and meets UL94 V-0 flammability requirements. The component is RoHS compliant and free of REACH Annex XVII, Annex XIV, and SVHC substances, as well as California Proposition 65 substances.
Designed for industrial applications, this hood is part of the Han A series and is suitable for use in standard environments. It is approved to UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL standards, and also meets EN 45545-2 fire protection requirements for railway vehicles. The packaging quantity is 10 pieces.
The hood is rated IP44. With a seal screw, it achieves IP65 and IP67.
-40°C to +125°C.
Polycarbonate (PC) in color RAL 7032 (pebble grey).
UL94 V-0.
UL 1977, CSA C22.2 No. 182.3, CE, DNV GL, and EN 45545-2 for railway fire protection.
M20.
Yes, the datasheet confirms RoHS compliance.
