| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Cable Entry | |
| China RoHS | |
| Conflict Minerals | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| EN 45545-2 | |
| ETIM | |
| GTIN | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Material | |
| IP65 (With Seal Screw) | |
| IP67 (With Seal Screw) | |
| Industrial Grade | |
| Ingress Protection | |
| Ingress Protection (IP) Rating | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Net Weight | |
| Operating Temperature | |
| Packaging Quantity | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Width | |
| eCl@ss |

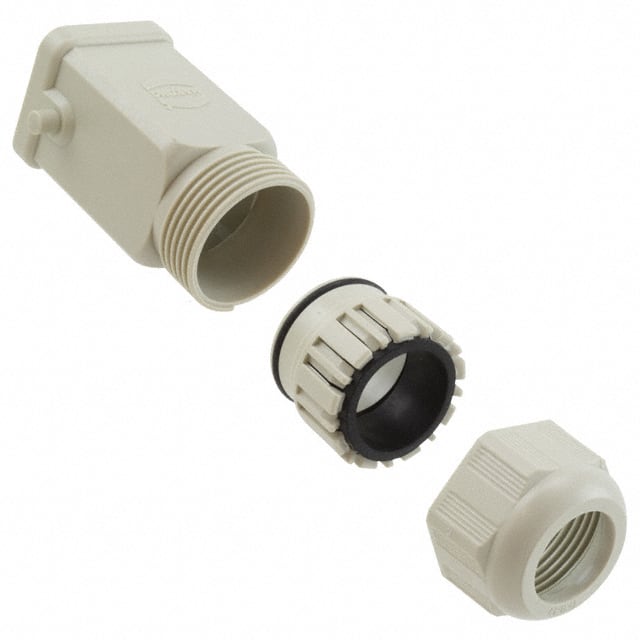

The HARTING Han 3A-HTE plastic hood (part number 19 20 003 0410 / 19200030410) is a size 3A top-entry hood designed for industrial connector applications. It is made of polycarbonate (PC) in RAL 7032 (pebble grey) color with a V-0 flammability class per UL 94.
This hood provides IP44 protection as standard, and IP65 / IP67 when used with an optional seal screw (sold separately). It accepts a single cable with a diameter range of 9 to 17 mm via the integrated cable gland. Locking is achieved with a single lever mechanism.
The housing operates over a temperature range of -40 °C to +125 °C and is RoHS, ELV, and China RoHS compliant. It also meets EN 45545-2 fire protection requirements for railway vehicles. The hood is packed in quantities of 10 pieces and weighs 17 g each.
The hood is rated IP44 as standard. With the optional seal screw installed, it achieves IP65 and IP67.
It is a size 3 A hood.
The housing is made of polycarbonate (PC) in gray RAL 7032 (pebble grey).
It accepts cables with a diameter of 9 to 17 mm.
It uses a single locking lever.
The operating temperature range is -40 to +125 °C.
