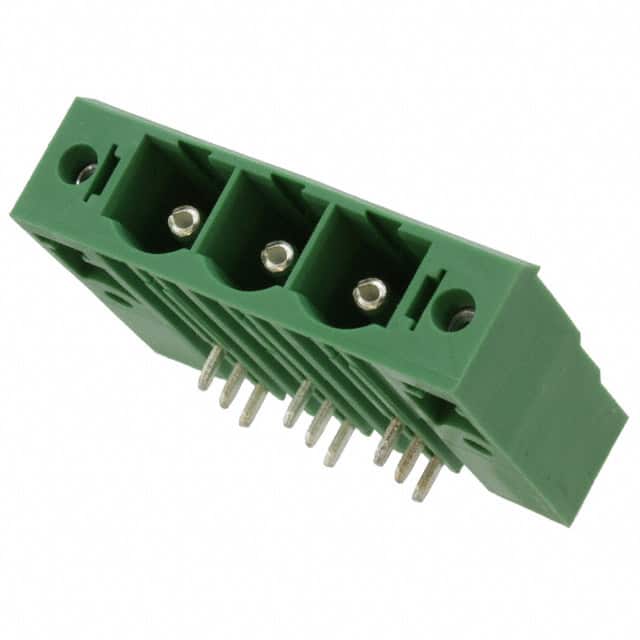

1913727 Phoenix Contact 1913727 is a 3-position terminal block header with 10.16mm pitch, rated 41A at 1000V (IEC), right angle through hole mounting, green insulating material, and shrouded design with mating flange.
Mfr Part #:

1913727

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1913727 is a 3-position terminal block header with 10.16mm pitch, rated 41A at 1000V (IEC), right angle through hole mounting, green insulating material, and shrouded design with mating flange.
✓ Total Stock: 10 pcs

1913727 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1913727 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Rated Current
Rated Voltage
Termination Style
Torque
Type
Voltage
View Similar Products (0)

1913727 Description

Short technical summary and product information.

The Phoenix Contact 1913727 is a POWER COMBICON PC 6 series shrouded header, designed for demanding high-power terminal block applications. It features 3 positions in a single level with 10.16mm pitch, providing a robust interface for plug connectors.



Electrical ratings include a rated current of 41A per IEC/DIN VDE, with a rated voltage of 1000V (IEC) and 600V (UL/CUL). The surge voltage rating is 8 kV, suitable for surge category III/3. The header accepts solid wire from 0.5 to 10 mm² and stranded wire from 0.5 to 6 mm², with a stripping length of 12 mm and a recommended torque range of 1.2 - 1.5 Nm.



Mechanically, the header is through hole mounted with solder termination, right angle orientation, and includes a mating flange for vibration-proof connection. The contact mating finish is silver, and the insulating material is polyamide (PA) with a UL 94 V0 flammability rating. The header accepts a CP-HCC 4 coding profile for keyed mating.

1913727 Quick Information

Product Type: Terminal Block Header
Series: PC 6
Canonical Name: TERM BLOCK HEADER 3POS 10.16MM RIGHT ANGLE THRU HOLE
Subcategory: Right Angle Header

1913727 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1913727 Features

  • 3 positions with 10.16mm pitch.
  • Rated 41A at 1000V (IEC).
  • Right angle through hole mounting.
  • Shrouded with mating flange.
  • UL 94 V0 green PA insulation.

1913727 Applications

  • High-power industrial control panels.
  • Power distribution and automation.
  • Motor drive and power supply connections.

1913727 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

10.16mm (0.400 inch).

How many positions does this header have?

3 positions in a single level.

What is the rated current of the 1913727?

41 A per IEC/DIN VDE.

What is the voltage rating?

1000 V (IEC) and 600 V (UL/CUL).

What mounting type does this header use?

Through hole with solder termination, right angle orientation.
