| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

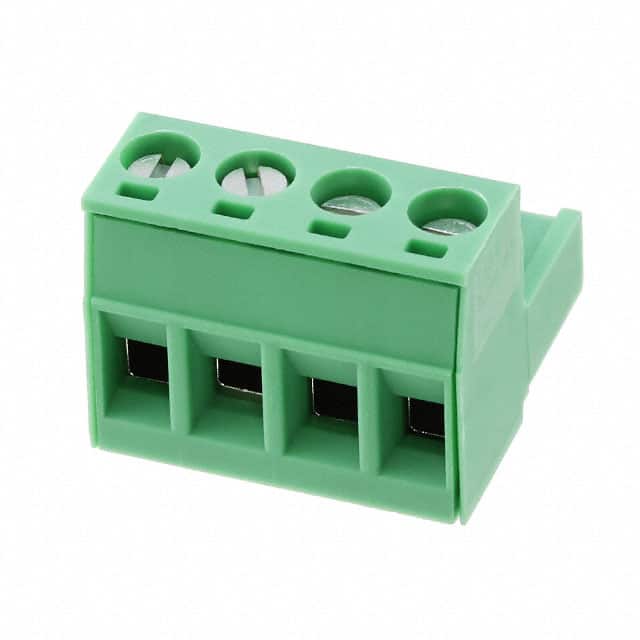

The Phoenix Contact 1911871 is a 4-position terminal block plug from the headers, plugs and sockets category. It features a 5.00 mm pitch with one level and four positions per level. The plug uses female socket contacts with tin mating finish and screw rising cage clamp termination for secure wire connections.
Rated at 16 A and 300 V, this plug accepts wire sizes from 0.2 to 2.5 mm². It is designed for free hanging (in-line) mounting with a 180° wire entry angle. The housing is green and includes retention latches on the non-wire side for secure mating.
This component is suitable for industrial control and power distribution applications requiring reliable pluggable interconnections. The rising cage clamp mechanism ensures stable and vibration-resistant wire retention.
It has 4 positions with a 5.00 mm pitch, one level, and 4 positions per level.
It is rated for 16 A and 300 V.
It uses screw - rising cage clamp termination.
It accepts wire from 0.2 to 2.5 mm².
It is free hanging (in-line) mounting with a 180° wire entry.
