| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

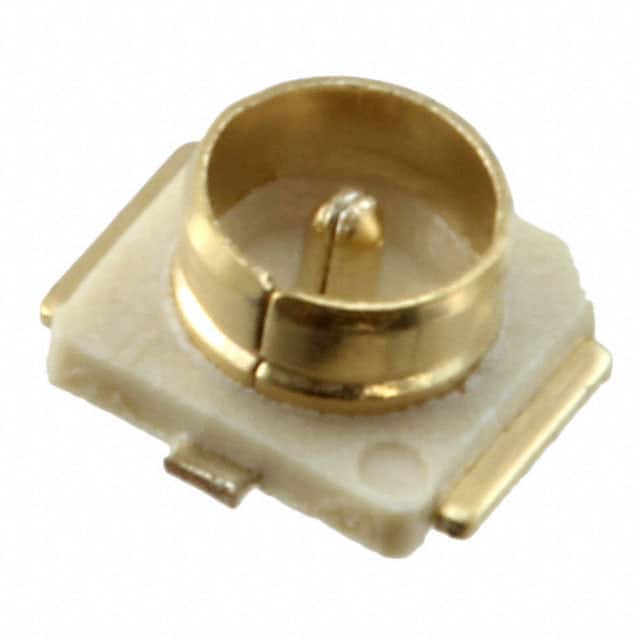

The TE Connectivity 1909763-1 is a UMCC (U.FL) standard coaxial connector designed for RF applications. It features a jack, male pin interface with a snap-on fastening mechanism, ensuring secure mating. The connector offers a characteristic impedance of 50 Ohms and supports frequencies up to 6 GHz, making it suitable for various wireless communication modules.
This connector is surface mountable (SMD) with solder termination for both the center contact and shield. The center contact is made of copper alloy, and the housing is colored ivory. It is designed for single-port configurations.
The 1909763-1 is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited) for moisture sensitivity. It is intended for use in compact RF assemblies such as Wi-Fi, Bluetooth, and GPS modules.
Packaging is typically in tape and reel for automated assembly. Cross-reference part numbers include A118077TR-ND, A118077CT-ND, and A118077DKR-ND from Digi-Key.
Surface Mount.
1 port.
UMCC (U.FL).
50 Ohms.
Up to 6 GHz.
Snap-On.
Solder for both contact and shield.
