| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Color | |
| Connection Method | |
| Current | |
| Data Rate | |
| Fiber Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| Power | |
| Voltage |

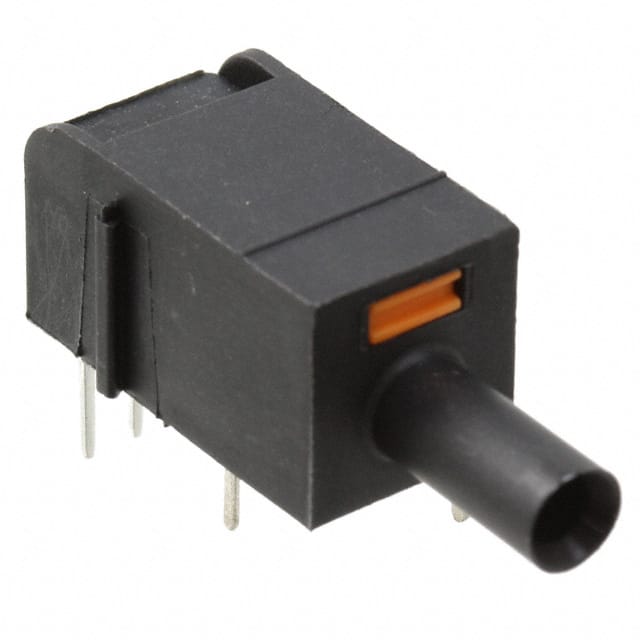

The Phoenix Contact 1907924 is a fiber optic PCB terminal block designed for reliable optical data transmission. It features a 10.16 mm pitch and a spring-cage connection method, ensuring secure and easy conductor termination.
This terminal block is suitable for polymer fibers with an outer sheath diameter of 2.2 mm, conforming to IEC 60793-2 type A4a standards. It supports a data rate of up to 5 Mbps and can achieve transmission distances of up to 50 meters. The connection direction is 0°, and it is designed for soldering onto PCBs.
Key features include a shielded housing with a receive diode, direct plug-in technology with a release button for user-friendliness, and a standard bend protection sleeve. Stability is enhanced by additional strain relief. The terminal block has a nominal cross-section of 0 mm² and an inflammability class of HB according to UL 94.
Applications for this component include general-purpose optical data communication where a robust and easy-to-use connection is required. The minimum order quantity is 10, and it is manufactured in Germany.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the Phoenix Contact 1907924 PCB terminal block is 10.16 mm.
The 1907924 terminal block has 1 position.
The connection method is spring-cage conn.
The 1907924 fiber optic terminal block supports a data rate of 5 Mbps.
The maximum transmission distance for the 1907924 is 50 meters.
The operating voltage range is 4.75V to 5.25V.
The inflammability class is HB according to UL 94.
