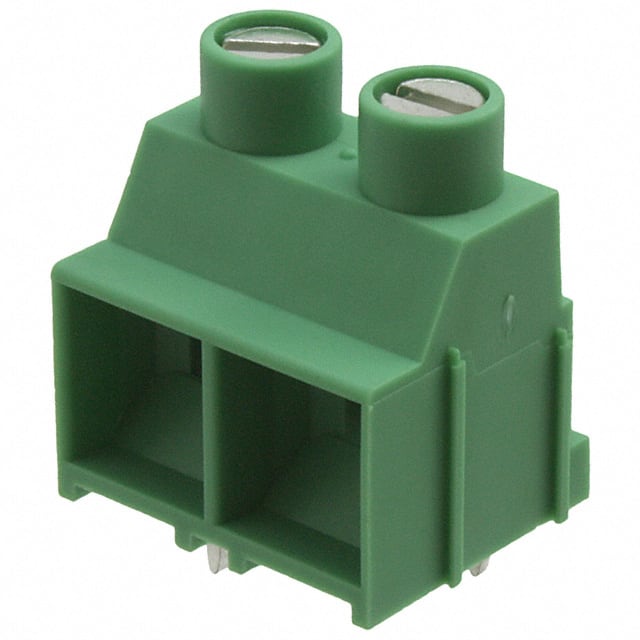

The Phoenix Contact MKDS 5 HV/ 2-9,52-Z (order no. 1907432) is a 2-position PCB terminal block with a pitch of 9.52 mm. It is designed for wire-to-board connections using a screw connection with a rising cage clamp termination style. The component is rated for a nominal current of 32 A and a nominal voltage of 690 V, with a rated surge voltage of 8 kV (category III/3 and III/2).
This terminal block accommodates conductors with a cross section of up to 6 mm² (maximum load current) and accepts wire gauges from 24 to 10 AWG (solid) and 24 to 12 AWG (stranded). The insulating material is polyamide (PA) with a UL94 V0 flammability rating, and the recommended tightening torque is between 0.5 Nm and 0.6 Nm. The product is supplied in a standard package of 50 pieces.
It is mounted via through-hole soldering with a horizontal mating orientation relative to the PCB. The component color is green. The datasheet confirms RoHS compliance since January 1, 2003.
This terminal block has 2 positions.
The pitch is 9.52 mm per the datasheet.
The nominal current rating is 32 A per the datasheet.
The nominal voltage rating is 690 V per the datasheet.
The mounting type is through hole (soldering).
The accepted wire gauge range is 24 to 10 AWG per the datasheet.
The insulating material has a UL94 V0 flammability rating.
