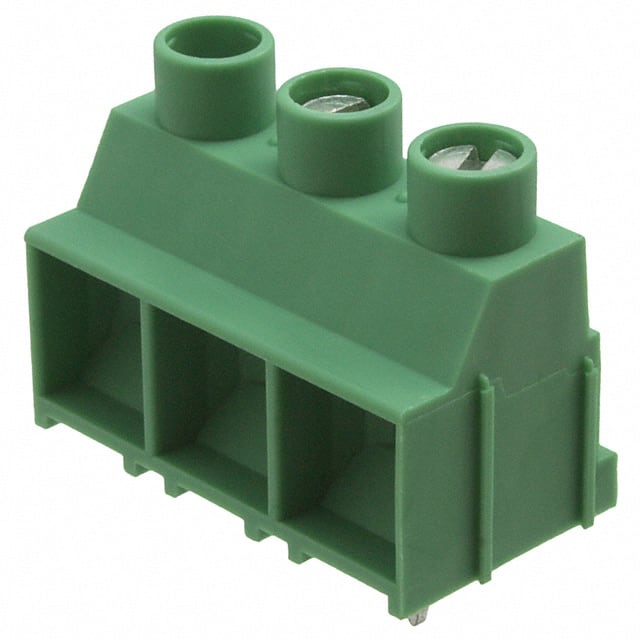

1907429 Phoenix Contact 1907429 is a 3-position PCB terminal block with screw connection and 9.52mm pitch. It is rated for 32A nominal current and 1000V nominal voltage.
Mfr Part #:

1907429

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1907429 is a 3-position PCB terminal block with screw connection and 9.52mm pitch. It is rated for 32A nominal current and 1000V nominal voltage.
✓ Total Stock: 19 pcs

1907429 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1907429 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Voltage
Voltage Rating
Width
Wire Gauge
Wire Termination
View Similar Products (0)

1907429 Description

Short technical summary and product information.

The Phoenix Contact 1907429 (MKDS 5 HV/3-9.52-Z) is a 3-position PCB terminal block designed for wire-to-board connections. It features a screw connection with rising cage clamp termination and a 9.52mm pitch. The part supports wire gauges from 10-30 AWG and accepts solid conductors up to 6 mm² and stranded conductors up to 4 mm².



Electrically, it is rated for a nominal current of 32A (per EN-VDE) and a nominal voltage of 1000V (IEC). The UL rating is 30A / 600V for Use Group B/C. Surge voltage ratings are 8 kV (III/3 and III/2) and 6 kV (II/2). The insulating material is PA (polyamide) with a flammability rating of UL 94 V0.



Mechanical dimensions include a length of 19.04mm, width of 16mm, and height of 21.5mm. The terminal block is through-hole mounted and mates horizontally with the board. It includes side interlocking features for multi-position assembly. The screw thread is M3 with a tightening torque of 0.5-0.6 Nm and a stripping length of 8mm.

1907429 Quick Information

Product Type: PCB Terminal Block
Series: MKDS 5 HV
Canonical Name: MKDS 5 HV/3-9.52-Z
Subcategory: Wire to Board

1907429 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1907429 Features

  • 3 positions with 9.52mm pitch.
  • Screw connection with rising cage clamp.
  • Rated 32A nominal current, 1000V nominal voltage.
  • Through-hole mounting, horizontal wire entry.
  • UL 94 V0 flammability rated polyamide housing.

1907429 Applications

  • High-voltage PCB power distribution.
  • Industrial control and automation equipment.
  • Power supply and inverter terminal blocks.
  • Building automation and lighting systems.

1907429 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1907429 have?

It has 3 positions.

What is the pitch of this terminal block?

The pitch is 9.52 mm (0.375 inches).

What is the current rating of the 1907429?

The nominal current per EN-VDE is 32 A. The UL rating is 30 A for Use Group B/C.

What is the voltage rating of the 1907429?

The nominal voltage per IEC is 1000 V. The UL rating is 600 V for Use Group B/C.

How is the 1907429 mounted?

It is mounted through hole with horizontal board entry.

What is the wire size range for the 1907429?

It accepts 10-30 AWG wire, solid conductors from 0.2 mm² to 6 mm², and stranded conductors from 0.2 mm² to 4 mm².
