| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Ingress Protection | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage |

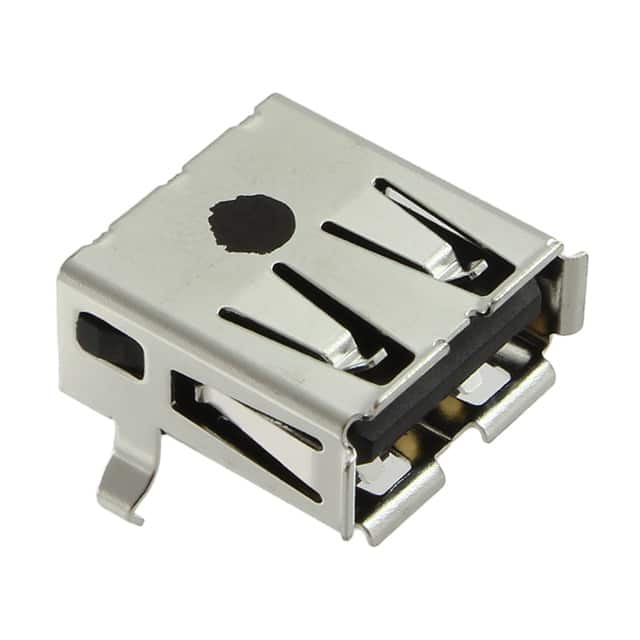

The TE Connectivity 1903814-1 is a USB 2.0 Type-A receptacle connector designed for reliable data and power transfer. It features 4 contacts, a single port, and a right angle through hole mounting orientation with solder termination. The connector is shielded to reduce electromagnetic interference and includes a board lock feature for secure PCB retention.
Electrical specifications include a current rating of 1 A and a voltage rating of 30 VAC. The operating temperature range is -55°C to 85°C, making it suitable for a wide range of environments. With 1500 mating cycles and an IP20 ingress protection rating, this connector offers durability and protection against solid objects larger than 12.5 mm.
The connector is compliant with RoHS and REACH regulations, and has an MSL of 1 (unlimited). It is a practical choice for USB 2.0 applications requiring a compact, shielded, and robust interconnection solution.
This connector has 4 contacts.
The current rating is 1 A.
The voltage rating is 30 VAC.
This connector uses through hole, right angle mounting.
Yes, it is shielded.
The operating temperature range is -55°C to 85°C.
It supports USB 2.0.
