| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section (Stranded) | |
| Current | |
| Current Rating (Nominal) | |
| Features | |
| Flammability Rating | |
| Height | |
| Hole Diameter | |
| Industrial Grade | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pin Dimensions | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| SVHC Present | |
| Screw Thread | |
| Standard Package Quantity | |
| Stripping Length | |
| Tape & Reel | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Voltage Rating (Nominal) | |
| Width | |
| Wire Gauge | |
| Wire Termination |

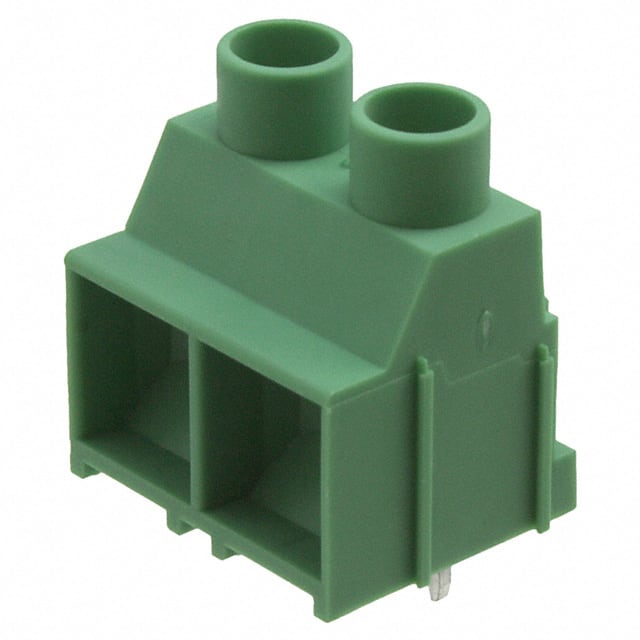

The Phoenix Contact 1902547 is a 2-position PCB terminal block from the MKDS 5 HV series. It features a pitch of 9.52mm and is designed for reliable wire termination using a screw rising cage clamp mechanism. The terminal block is rated for a nominal current of 32A and a nominal voltage of 800V, with surge voltage ratings up to 8kV for enhanced safety in industrial environments.
It accepts wire sizes from 10 to 30 AWG (solid 0.2-6 mm², stranded 0.2-4 mm²) and requires a stripping length of 8mm. The tightening torque should be set between 0.5 Nm and 0.6 Nm. The housing is made of green polyamide (PA) with a UL 94 V-0 flammability rating, ensuring high thermal resistance.
This terminal block is through-hole mounted on the PCB with a horizontal mating orientation. Its compact dimensions are 19.04mm length, 21.5mm height, and 16mm width. The side interlocking feature allows multiple units to be stacked for larger configurations. The product is RoHS compliant and REACH unaffected.
2 positions.
The pitch is 9.52mm (from datasheet).
The nominal current rating is 32A.
The nominal voltage is 800V, with rated voltage up to 1000V for certain categories.
Through-hole mounting.
Wire gauge 10-30 AWG.
Polyamide (PA) with UL 94 V-0 rating.
