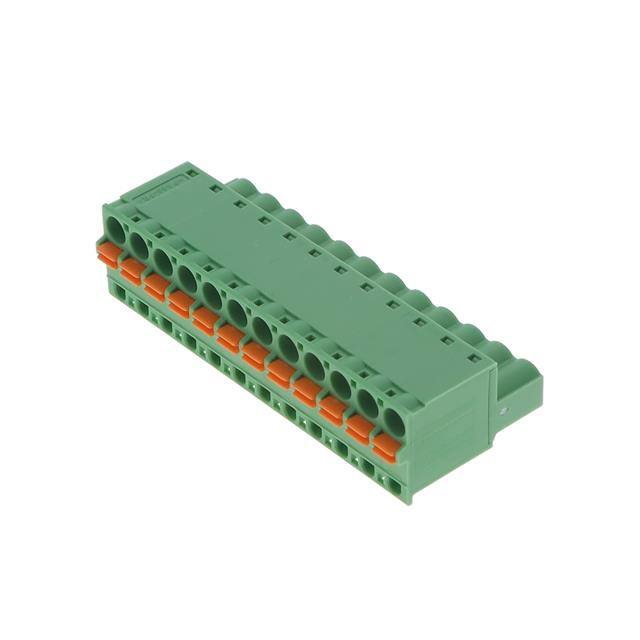

1902217 Phoenix Contact 1902217 is a 12-position, 5.08mm pitch, female socket terminal block plug with screwless push-in spring connection. It features a free hanging (in-line) mounting style and is rated for 10A and 300V.
Mfr Part #:

1902217

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1902217 is a 12-position, 5.08mm pitch, female socket terminal block plug with screwless push-in spring connection. It features a free hanging (in-line) mounting style and is rated for 10A and 300V.
✓ Total Stock: 50 pcs

1902217 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1902217 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Halogen Free
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1902217 Description

Short technical summary and product information.

The Phoenix Contact 1902217 is a 12-position plug connector from the COMBICON FKCT 2,5 series. It uses a screwless leg spring, push-in spring termination for fast and reliable conductor connection. Solid or ferruled flexible conductors can be inserted directly without tools. The pitch is 5.08mm and the wire entry is 180 degrees straight.



The plug is rated for 10A (with a maximum load current of 12A at 2.5 mm² conductor) and 300V. It accepts wire from 0.2 to 2.5 mm² (24-12 AWG). The housing is green and includes retention latches on the non-wire side for secure mating with headers.



The connector is free hanging (in-line) and comes in a standard package quantity of 50 pieces. Contact mating finish is tin.

1902217 Quick Information

Product Type: Terminal Block Plug
Series: FKCT 2,5/…-ST
Canonical Name: Phoenix Contact FKCT 2,5/12-ST-5,08 Plug, Female Sockets, 12 Positions, 5.08 mm Pitch, Push-In Spring Connection
Subcategory: Headers, Plugs and Sockets

1902217 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1902217 Features

  • 12 positions with 5.08mm pitch.
  • Screwless push-in spring termination.
  • Rated for 10A and 300V.
  • Accepts 24-12 AWG wire.
  • Retention latches for secure mating.

1902217 Applications

  • Used in industrial control panels.
  • Suitable for building automation wiring.
  • Ideal for modular junction boxes.
  • Applies to PLC and I/O systems.

1902217 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Phoenix Contact 1902217?

The pitch is 5.08mm (0.200 inches).

How many positions does the 1902217 have?

It has 12 positions.

What is the current rating of the 1902217?

The rated current is 10A. The maximum load current is 12A at 2.5 mm² conductor.

What is the voltage rating of this terminal block plug?

The rated voltage is 300V. The rated voltage is 320V for overvoltage category III/3 and III/2, and 630V for overvoltage category II/2.

What mounting type does the 1902217 use?

The mounting type is free hanging (in-line).

What wire sizes does the 1902217 accept?

It accepts solid and stranded wire from 0.2 to 2.5 mm² (24 to 12 AWG).

What is the termination style of the 1902217?

The termination style is screwless - leg spring, push-in spring.
