| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Voltage | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

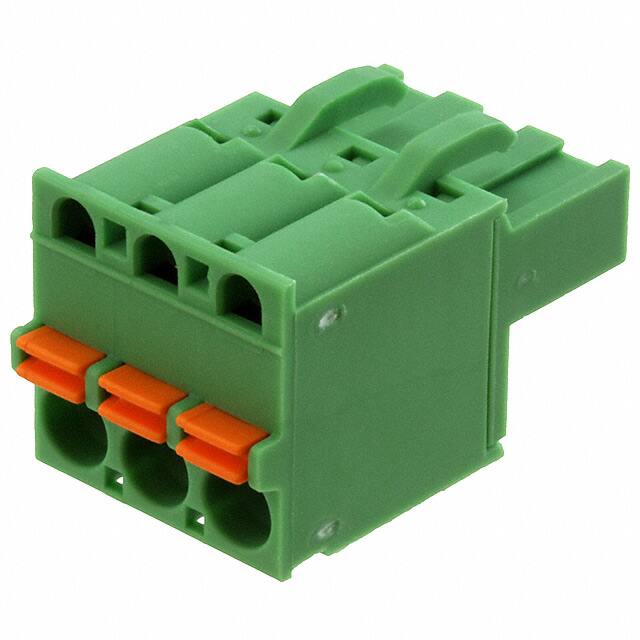

The Phoenix Contact 1902123 is a 3-position plug from the FKCT 2,5 series, featuring female socket contacts with a 5.08mm pitch. It is designed for free hanging (in-line) mounting and utilizes a screwless push-in spring termination system, allowing for quick and tool-free connection of solid or ferruled conductors. The plug accepts wire sizes from 0.2 to 2.5 mm² (24-12 AWG) and is rated for 300V (320V rated voltage) and 10A (12A nominal current).
This plug incorporates a T-shaped spring cage design that reduces overall height compared to standard connectors, making it suitable for space-constrained applications. It includes retention latches on the non-wire side to ensure secure mating with headers. The green housing and tin-plated contacts provide reliable performance in industrial environments.
Additional features include two test connections compatible with 2mm test pins or 2.3mm test plugs, facilitating field troubleshooting. The connector is part of a modular system and can be paired with compatible headers and flanges for vibration-resistant assemblies.
3 positions.
5.08 mm (0.200 inches).
300 V (rated voltage 320 V).
10 A (nominal current 12 A).
Free hanging (in-line) mounting.
Screwless push-in spring termination (leg spring, push-in spring).
0.2 to 2.5 mm² (24-12 AWG).
