| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range Max | |
| Clamping Range Min | |
| Clamping Ring Material | |
| ELV | |
| Failure Rate | |
| Halogen Free | |
| Includes | |
| Ingress Protection | |
| Material | |
| Net Weight | |
| Operating Temperature | |
| Outside Cable Diameter (Max) | |
| Outside Cable Diameter (Min) | |
| Packaging Size | |
| REACH SVHC | |
| SVHC Present | |
| Seal Material | |
| Surface Finish | |
| Thread Size | |
| Tightening Torque | |
| Type | |
| Width Across Corners | |
| Wrench Size |

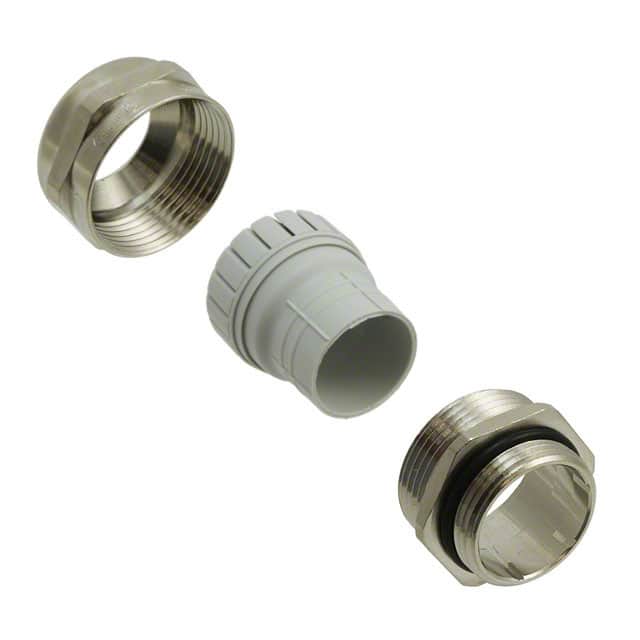

The Harting 19000005090 is a Han CGM-M series cable gland with M25 thread, designed for cables with an outside diameter of 9 to 16 mm. The gland is constructed from nickel-plated brass with an NBR seal and a polyamide (PA) clamping ring, providing a tightening torque of up to 12 Nm. It offers ingress protection rated IP68 and IP69K, making it suitable for demanding environments requiring dust-tight and waterproof sealing. The operating temperature range is -40°C to 100°C. This cable gland is RoHS compliant with exemption 6(c) and contains lead as a REACH SVHC. It is supplied in packaging of 10 pieces with a net weight of 50 g each.
M25
9 to 16 mm
IP68 and IP69K
-40°C to 100°C
Brass body with nickel plating, NBR seal, polyamide clamping ring
Yes, with exemption 6(c) for lead in copper alloy
