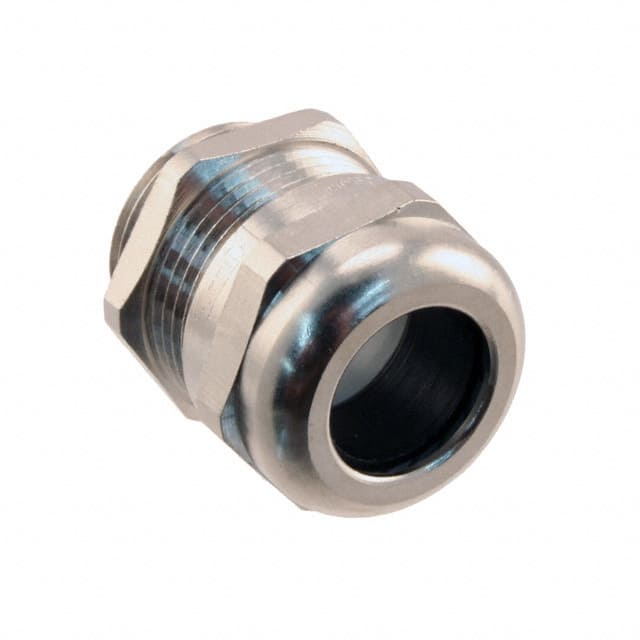

19000005084 Harting 19000005084 Han CGM-M cable gland with M20 thread, clamping range 10-14mm, brass nickel plated housing, NBR seal, IP68/IP69K protection.
Mfr Part #:

19000005084

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 19000005084 Han CGM-M cable gland with M20 thread, clamping range 10-14mm, brass nickel plated housing, NBR seal, IP68/IP69K protection.
✓ Total Stock: 15 pcs

19000005084 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19000005084 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Halogen Free
Includes
Industrial Grade
Ingress Protection
Material
Operating Temperature
Outside Cable Diameter (Max)
Outside Cable Diameter (Min)
SVHC Present
Surface Finish
Thread Size
Type
View Similar Products (0)

19000005084 Description

Short technical summary and product information.

The Harting 19000005084 is a Han CGM-M series cable gland designed for industrial applications requiring reliable cable entry and sealing. It features an M20 thread with a clamping range of 10-14mm, accommodating a variety of cable diameters.



Constructed from nickel-plated brass, the gland provides robust mechanical strength and corrosion resistance. The NBR seal ensures a tight fit, achieving IP68 and IP69K ingress protection against dust and high-pressure water jets. The integrated polyamide clamping ring secures the cable firmly.



This cable gland operates over a wide temperature range from -40°C to 100°C, with a maximum tightening torque of 10 Nm and a wrench size of 24mm. It is UL and CSA approved, and RoHS compliant with exemptions for lead content in the copper alloy.

19000005084 Quick Information

Product Type: Cable Gland
Series: Han CGM-M
Canonical Name: Harting Han CGM-M M20x1.5 Cable Gland, Clamping Range 10-14mm, Brass Nickel Plated, IP68/IP69K
Subcategory: Cable and Cord Grips

19000005084 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC: Lead
Lead Free: No

19000005084 Features

  • Nickel-plated brass cable gland for M20 threads.
  • Clamping range 10-14mm cable diameter.
  • IP68 and IP69K ingress protection rating.
  • NBR seal for reliable environmental sealing.
  • UL 514B and CSA C22.2 No. 18.3 approved.

19000005084 Applications

  • Industrial control panels and junction boxes.
  • Automated machinery and robotics cable entry.
  • Outdoor lighting and harsh environment installations.
  • Marine and offshore equipment requiring high IP protection.
  • Cable management in food processing and washdown areas.

19000005084 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the thread size of this cable gland?

M20 according to the datasheet.

What cable diameter range does this gland accommodate?

10 to 14mm.

What ingress protection rating does it have?

IP68 and IP69K.

What is the operating temperature range?

-40°C to 100°C.

Is this cable gland UL or CSA approved?

Yes, UL 514B and CSA C22.2 No. 18.3 approved.

What materials are used in this cable gland?

Brass with nickel plating for the gland body, NBR for the seal, and polyamide (PA) for the clamping ring.
