| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,190 pcs
|
5190 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Storage Temperature | |
| Tape & Reel | |
| Tape Width | |
| Viewing Angle |

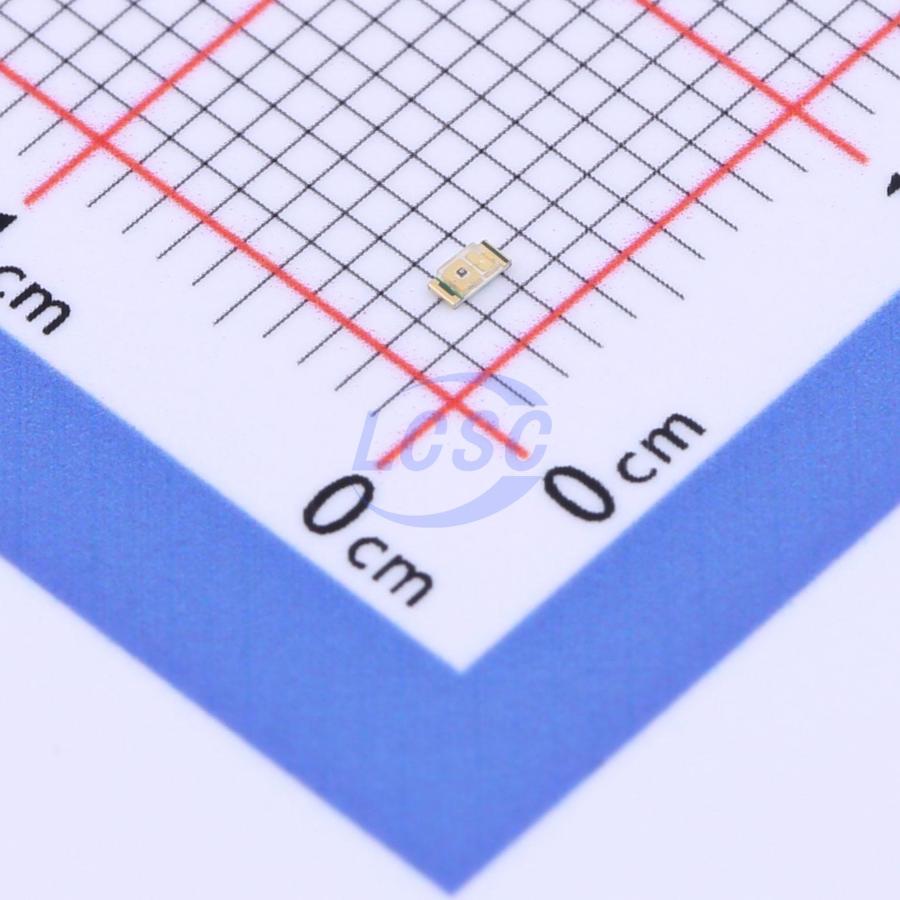

This Everlight Electronics 19-217/R6C-AL1M2VY/6T is a surface-mount device (SMD) LED designed for various indication and backlighting applications. It emits a brilliant red light with a typical peak wavelength of 632 nm and a dominant wavelength between 617.5 nm and 633.5 nm.
The LED features a wide viewing angle of 120 degrees, making it suitable for applications requiring broad light distribution. Its electro-optical characteristics include a luminous intensity ranging from 11.5 to 28.5 mcd at 5mA forward current, and a forward voltage between 1.70V and 2.20V at 25°C.
Designed for compatibility with automatic placement equipment and reflow soldering processes, this component is packaged in an 8mm tape on a 7-inch diameter reel. It operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +90°C. The product is Pb-free and complies with RoHS 3 and Halogen Free standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical viewing angle of the 19-217/R6C-AL1M2VY/6T LED is 120 degrees.
The forward voltage range for the 19-217/R6C-AL1M2VY/6T LED is 1.70V to 2.20V.
The dominant wavelength of the 19-217/R6C-AL1M2VY/6T LED is between 617.5 nm and 633.5 nm.
The operating temperature range for this SMD LED is -40°C to +85°C.
The RoHS Status is RoHS3 Compliant.
Yes, this LED is Halogen Free.
