| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Halogen Free | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Storage Temperature | |
| Viewing Angle |

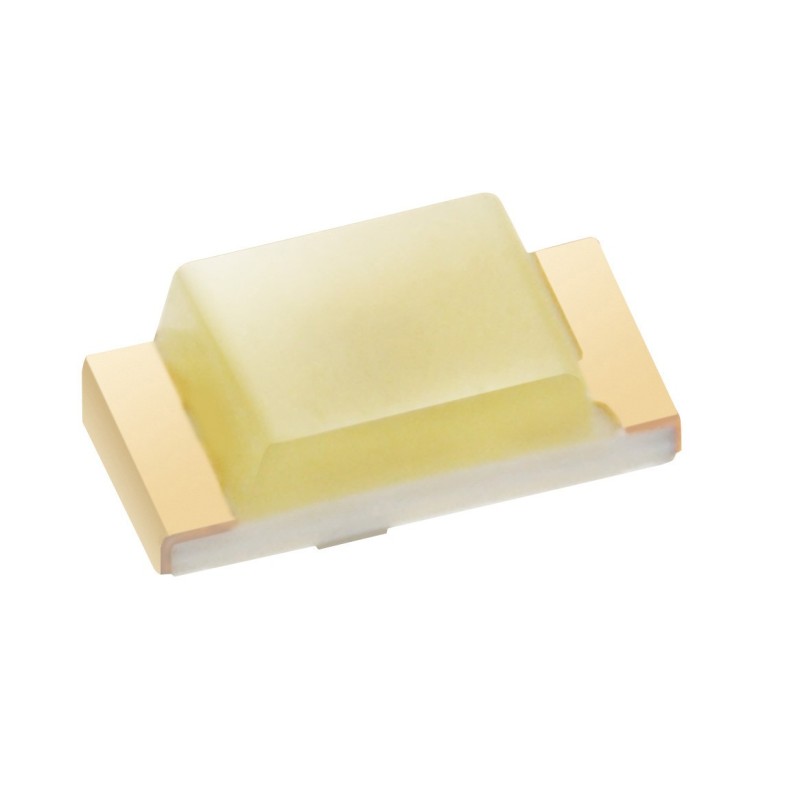

This 19-213/R6C-AP1Q2B/5T SMD LED from Everlight Electronics emits Brilliant Red light. It is designed for surface mount applications and comes packaged in an 8mm tape on a 7-inch diameter reel, compatible with automatic placement equipment.
Key electrical characteristics include a forward voltage range of 1.75V to 2.35V and a maximum forward current of 25mA. The LED features a typical peak wavelength of 632nm and a dominant wavelength between 617.5nm and 633.5nm. Its viewing angle is a wide 120 degrees, with a typical luminous intensity of 112.0 mcd at 20mA.
The operating temperature range is -40°C to +85°C, and storage temperatures range from -40°C to +90°C. This component is Pb-free and Halogen-free, complying with RoHS3 and REACH standards. Its compact size makes it suitable for miniature applications, including backlighting in dashboards, switches, and telecommunications equipment like telephones and faxes, as well as flat backlights for LCDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity is 112.0 mcd at 20mA.
The viewing angle is 120 degrees.
The peak wavelength is 632 nm.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1.
Yes, it is REACH Unaffected.
