| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,655 pcs
|
1655 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly | |
| Color | |
| Contact Surface | |
| Current | |
| Current Rating | |
| Dimension a | |
| Features | |
| Flammability Rating | |
| Front Panel Wire Connection | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Minimum Order Quantity | |
| Nominal Current | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Panel Mount Type | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rated Voltage (III/2) | |
| Rear Panel Wire Connection | |
| SVHC Present | |
| Voltage | |
| Voltage Rating | |
| Width |

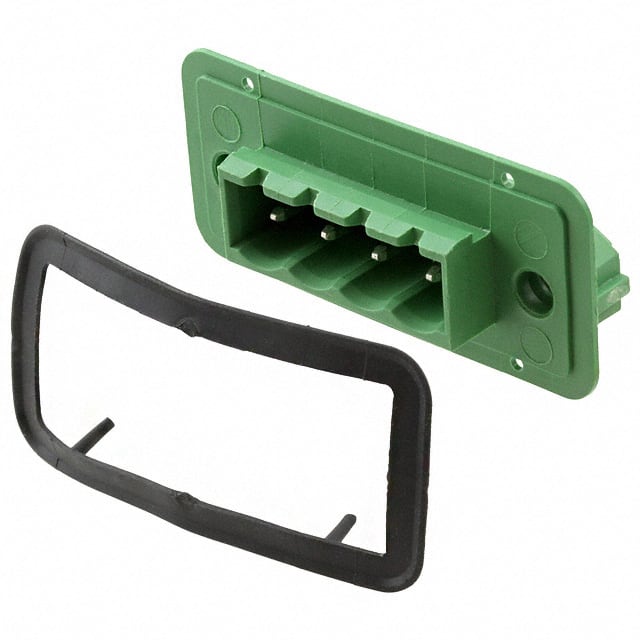

The Phoenix Contact 1899155 is a 4-position terminal block header from the DFK-MSTBVA series. It features a 5.08mm pitch and is green in color. The header is designed for panel mount applications with a screw mount rear flange and straight PCB pins for soldering. It includes a sealing gasket for dust protection when mounted inside a device housing.
Electrical ratings include a nominal current of 12A and a rated voltage of 320V (overvoltage category III/2) with a surge voltage rating of 4kV. The insulating material is PBT with a UL94 V0 flammability rating. Contact surfaces are tin-plated. Dimensions: length 12mm, width 39.92mm, and dimension a (centerline distance) 15.24mm.
This header is intended for use with MSTB 2.5 or FKC 2.5 plugs, providing a reliable plug-in connection. It is assembled via soldering and packed individually with a minimum order quantity of 50. Country of origin is Poland.
4 positions.
5.08mm.
Nominal current 12A, maximum load current 12A.
Rated voltage (III/2) 320V, nominal voltage 250V.
Screw mount - rear flange.
PBT with UL94 V0.
Green.
