| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Surface | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Class | |
| Front Panel Wire Connection | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Panel Mount Type | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rear Panel Wire Connection | |
| Tape & Reel | |
| UL 94 | |
| Voltage | |
| Voltage Rating | |
| Width |

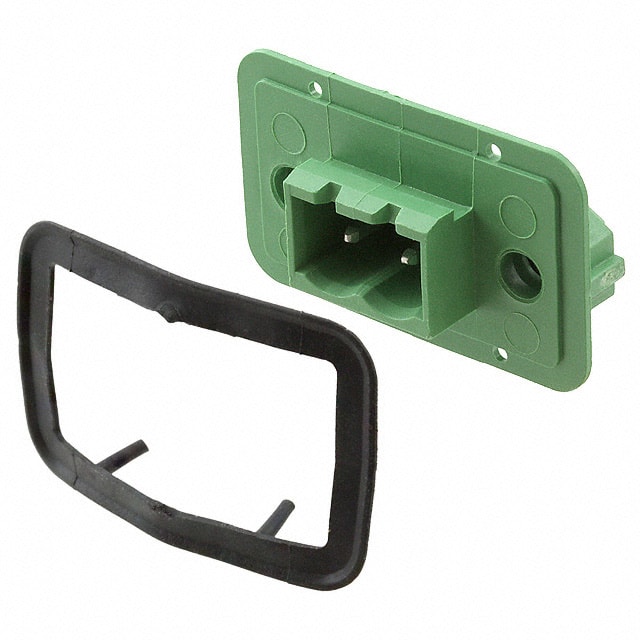

The Phoenix Contact 1899139 is a 2-position panel mount header from the DFK-MSTBVA series. It features a 5.08 mm pitch and is designed for soldering to a PCB. The header accepts corresponding MSTB 2.5 or FKC 2.5 plugs for external wiring. A sealing gasket protects the inside of the housing from dust when mounted through a device panel.
Electrical ratings include a nominal current of 12 A and a rated voltage of 320 V (III/2). The insulating material is PBT (group IIIa) with a flammability class of UL 94 V0. Contact surfaces are tin-plated. The header is mounted using rear flange screws and has straight PCB pins for internal connection.
This component is suitable for industrial control cabinets, power distribution, and other applications requiring a reliable pluggable interface between internal PCB circuits and external field wiring.
It has 2 positions.
The pitch is 5.08 mm.
The nominal current rating is 12 A.
The rated voltage (III/2) is 320 V.
It is a screw mount with a rear flange, designed for panel mounting.
The insulating material is PBT (group IIIa) with a flammability class of UL 94 V0.
The contact surface is tin.
