| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

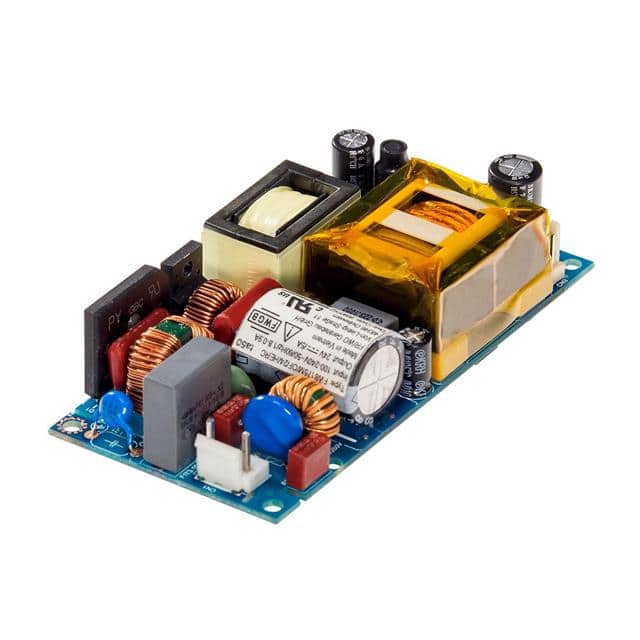

This FRIWO 1899059 is an AC/DC converter with a power rating of 120W and an output current of 5A. It operates with an input voltage range of 85 to 264 VAC and provides a single 24VDC output. The converter has an efficiency of 88.5% and is designed for chassis mounting in an open frame configuration.
Designed for applications in ITE (Commercial) and Medical sectors, this unit meets standards such as 60601-1 and 60950-1, and carries CE and cURus certifications. It operates within a temperature range of -20°C to 70°C, with derating applied at higher temperatures. The dimensions are 101.6mm x 50.8mm x 27.9mm.
Key specifications include its wide input voltage range, high power output, and specific application suitability. The chassis mount and open frame design facilitate integration into various systems requiring a reliable power conversion solution.
85-264 VAC.
120W.
88.5%.
-20°C to 70°C with derating.
Chassis mount.
CE, cURus, compliant with 60601-1 and 60950-1.
101.6mm x 50.8mm x 27.9mm.
