| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Housing Material | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

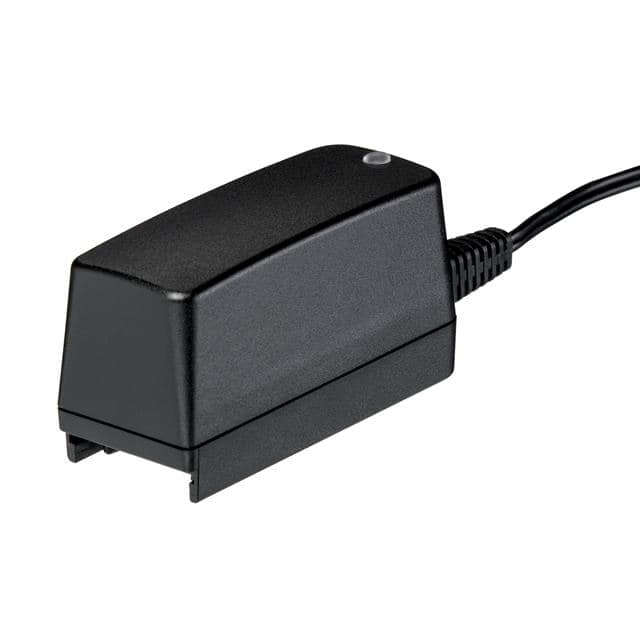

The FRIWO Gerätebau GmbH 1898124 is an AC/DC wall mount adapter with a 5V output and a 10W power rating. Designed for international use, it operates within a 100-240 VAC input range and meets Level VI efficiency standards.
This adapter is suitable for medical applications, indicated by its 'Medical' application attribute and compliance with standards like 60601-1. It operates within a temperature range of 0°C to 45°C and has a low no-load power consumption of 90mW.
The unit has a compact housing with dimensions of 77.5mm x 31.5mm x 40.9mm and features a Class II wall mount design. It includes a 1.83m (72") cord for convenient connectivity. The housing is constructed from PC/ABS V0 material, ensuring durability.
Key specifications include an output current of 2A and an output lead with a cross-section of 2XAWG20 and a length of 1830mm.
The adapter provides a 5VDC output voltage and a 2A output current.
The power rating for this adapter is 10W.
The operating temperature range is from 0°C to 45°C.
The dimensions are 77.5mm x 31.5mm x 40.9mm.
Yes, the RoHS status is RoHS3 Compliant.
The MSL is 1.
Yes, the REACH status is REACH Unaffected.
