Mfr Part #:

1897974

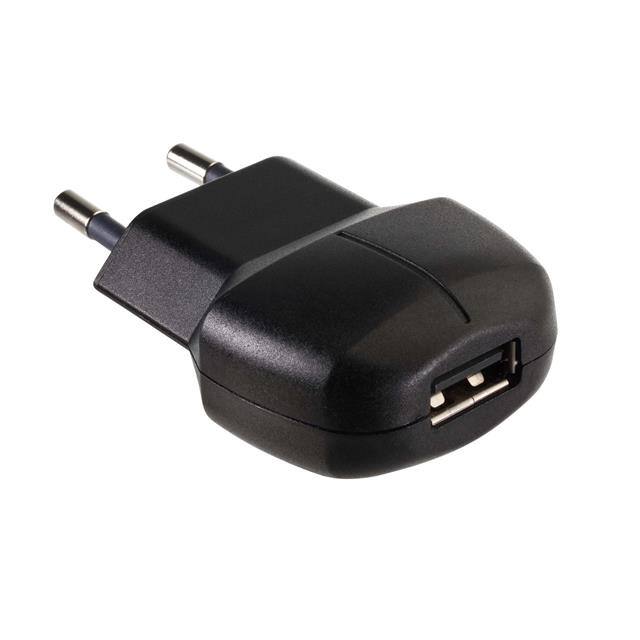

The FRIWO Gerätebau GmbH 1897974 is an AC/DC wall mount adapter providing 5V at 1A for a total of 5W. It features a USB A receptacle output and a CEE 7/16 input connector.

Stock on Request

1897974 Description

Short technical summary and product information.

This FRIWO Gerätebau GmbH AC/DC adapter, part number 1897974, is designed for wall mounting and operates with a universal input voltage range of 100-240 VAC. It delivers a stable 5V DC output at 1A, providing a total power of 5W. The adapter meets Level VI efficiency standards, ensuring energy conservation.

The unit features a standard USB A receptacle for output connectivity and a CEE 7/16 input connector, making it suitable for various applications. The housing is constructed from durable PC/ABS V0 material and is black in color. Its compact dimensions of 64.8mm x 40.0mm x 18.0mm make it ideal for space-constrained environments.

Designed for ITE (Commercial) applications, this adapter operates within a temperature range of 0°C to 40°C. It has received certifications from CE, ENEC, and SIQ, and complies with standard 62368-1. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.

1897974 Quick Information

Product Type: AC/DC Adapter

Canonical Name: FRIWO Gerätebau GmbH FW8005/EU/05 AC/DC Wall Mount Adapter

Subcategory: Wall Mount Adapter

1897974 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1897974 Features

Provides 5V DC output at 1A.
Delivers a total of 5W power.
Universal 100-240V AC input.
Features a USB A receptacle output.
Meets Level VI efficiency standards.

1897974 Applications

Powers USB-powered consumer electronic devices.
Suitable for information technology equipment applications.
Provides 5V DC to USB devices.
Wall-mount adapter for commercial IT equipment.
Powers small portable electronic devices.

1897974 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the FRIWO 1897974?

0°C to 40°C.

What is the housing type and material of this adapter?

PP-USB-MINI housing made of PC/ABS V0 (rated 125°C).

What are the dimensions of the FRIWO 1897974?

64.8mm x 40.0mm x 18.0mm.

What input voltage does the 1897974 accept?

100-240 VAC.

What output voltage and current does it provide?

5 VDC at 1 A.

What efficiency level does this adapter meet?

Level VI.

What safety approvals does the FRIWO 1897974 have?

CE, ENEC, SIQ per IEC 62368-1.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	FRIWO Gerätebau GmbH
Applications	ITE (Commercial)
Approval Agency	CE, ENEC, SIQ
Current	1A
Efficiency	Level VI
Form	Wall Mount (Class II)
Height	18.0mm (0.71")
Housing Material	PC / ABS V0
Input Connector	CEE 7/16
Input Type	Fixed Blade
Input Voltage	100-240 VAC
Length	64.8mm (2.55")
Operating Temperature	0°C ~ 40°C
Output Connector	USB A Receptacle
Output Current	1 A
Output Voltage	5 VDC
Power (Watts)	5 W
Region Utilized	Europe
Standard Number	62368-1
Voltage	5V
Width	40.0mm (1.57")
