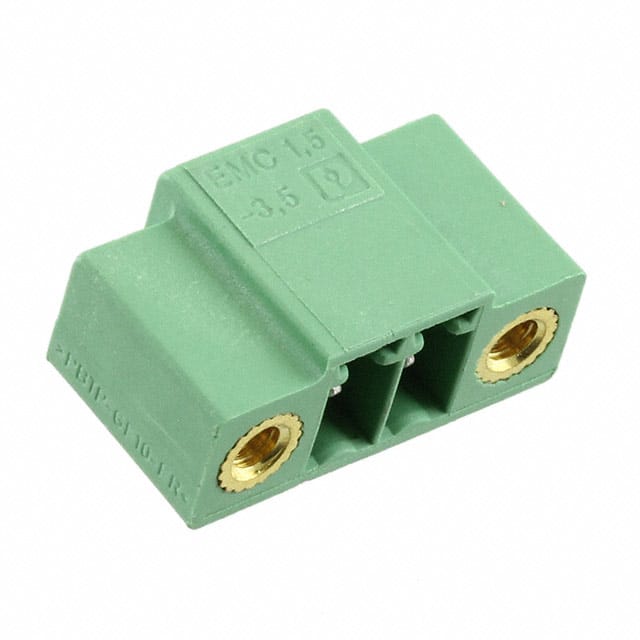

1897241 Phoenix Contact 1897241 is a 2-position, 3.50mm pitch, right-angle terminal block header with shrouded male pins, through-hole press-fit termination, and tin-plated contacts.
Mfr Part #:

1897241

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1897241 is a 2-position, 3.50mm pitch, right-angle terminal block header with shrouded male pins, through-hole press-fit termination, and tin-plated contacts.
✓ Total Stock: 50 pcs

1897241 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1897241 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1897241 Description

Short technical summary and product information.

The Phoenix Contact 1897241 is a 2-position terminal block header designed for printed circuit board applications. It features a right-angle orientation with male pins in a shrouded (4-side) housing for protected mating. The header uses a press-fit termination for a reliable, solderless connection to the through-hole PCB.



Key electrical ratings include 8A current and 300V voltage. The contact mating finish is tin, providing good conductivity and corrosion resistance. The housing is green and includes a mating and mounting flange for secure panel attachment.



This component is suitable for industrial control, power distribution, and signal interconnection applications where a compact, reliable wire-to-board interface is needed.

1897241 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1897241 Terminal Block Header, Male Pins, Shrouded (4 Side), 2 Positions, 3.50mm Pitch, Right Angle, Through Hole, Press-Fit, Tin
Subcategory: Shrouded Header

1897241 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1897241 Features

  • 2-position right-angle shrouded header.
  • 3.50mm pitch for compact design.
  • Press-fit through-hole termination.
  • Rated 8A current and 300V voltage.
  • Tin-plated contacts with mounting flange.

1897241 Applications

  • Used in industrial control panels.
  • Suitable for power distribution blocks.
  • Ideal for wire-to-board interconnections.
  • Applied in signal and sensor interfaces.

1897241 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1897241 have?

This header has 2 positions in 1 level.

What is the pitch of Phoenix Contact 1897241?

The pitch is 3.50mm (0.138 inches).

What is the current and voltage rating?

The header is rated for 8A current and 300V voltage.

What is the mounting type and orientation?

It is a right-angle, through-hole mount header with press-fit termination.

What is the contact plating finish?

The contact mating finish is tin.

Does the header have a mounting flange?

Yes, it includes a mating and mounting flange for secure attachment.
