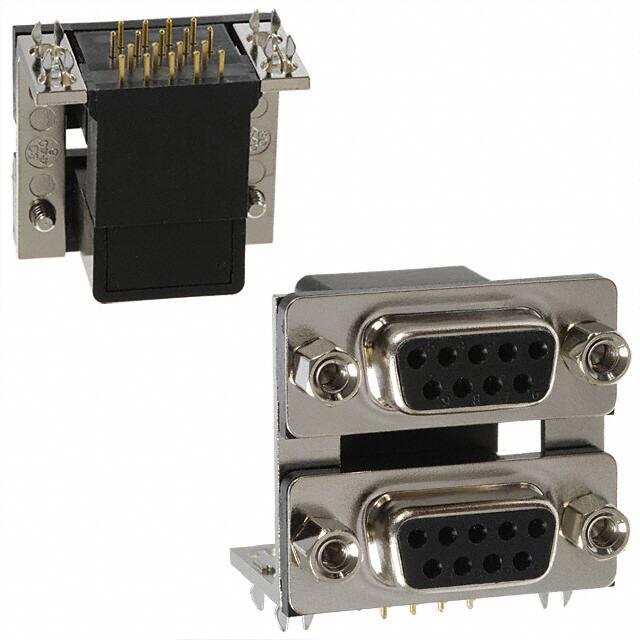

The 189-009-513R571 is a dual port D-Sub receptacle from NorComp Inc., featuring two stacked 9-position (DE-9) female socket connectors. It is designed for panel mount installation with through hole right angle solder termination, making it suitable for space-constrained applications where multiple connections are needed in a single footprint.
Electrical specifications include a current rating of 5 amps per contact, insulation resistance of 1000 ohms minimum, and dielectric withstanding voltage of 1000 VAC for 1 minute. The operating temperature range is -55°C to +105°C, allowing use in industrial and commercial environments.
The connector uses brass contacts with gold flash plating over the entire contact surface. The insulator is black PA9T rated UL94 V-0, capable of withstanding 260°C processing temperatures. The shell is nickel plated steel, providing EMI shielding. Features include board locks for secure PCB attachment and 4-40 female screwlocks on the mating side for reliable connection.
This stacked D-Sub connector is commonly used in applications requiring multiple serial or parallel interfaces in a compact layout, such as industrial control panels, data communication equipment, and test instrumentation.
This connector has two stacked 9-position ports, each with 9 female sockets, for a total of 18 contacts.
The current rating is 5 amps per contact.
Panel mount with through hole right angle solder termination.
-55°C to +105°C.
Steel shell with nickel plating.
Yes, it includes board locks for secure PCB attachment.
Yes, the datasheet confirms RoHS3 compliance.
