| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
830 pcs
|
830 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

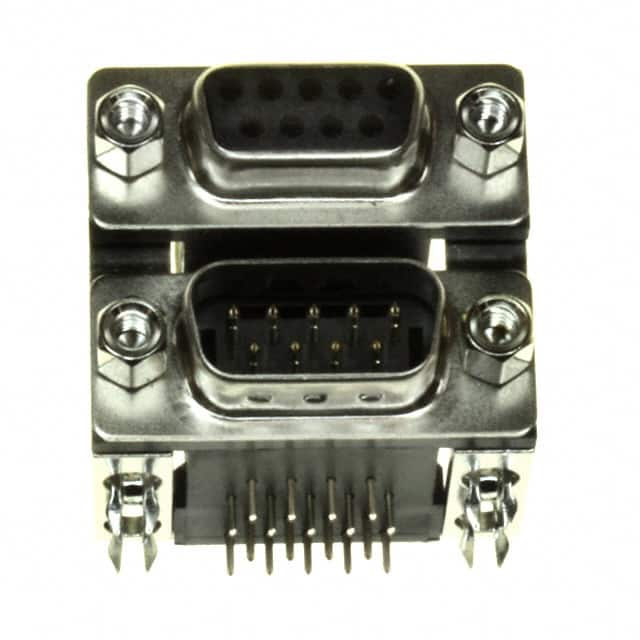

This is a D-Sub stacked connector assembly from NorComp Inc., part number 189-009-313R571. It combines a 9-position plug (male pins) and a 9-position receptacle (female sockets) in a single stacked configuration, allowing for two separate D-Sub connections in a compact footprint.
The connector features a right angle orientation with solder termination, suitable for through-hole mounting on a PCB. It is designed for panel mount applications and includes board locks, grounding indents, and shielding for EMI protection. The shell is made of steel with nickel plating, and the contacts are gold flashed for reliable signal transmission.
With a current rating of 5A per contact and a UL94 V-0 flammability rating, this connector is suitable for various industrial and commercial applications requiring multiple D-Sub connections in a space-saving design. The backset spacing is 8.08 mm, and the flange feature includes female screwlocks (4-40) on the mating side.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.62 | $9.62 |
| 10+ | $8.23 | $8.23 |
| 25+ | $7.71 | $7.71 |
| 45+ | $7.34 | $7.34 |
| 90+ | $6.99 | $6.99 |
| 270+ | $6.51 | $6.51 |
| 540+ | $6.20 | $6.20 |
| 1,035+ | $5.91 | $5.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This stacked connector has two connectors: a 9-position plug and a 9-position receptacle, each with 2 rows.
The current rating is 5A per contact.
The connector supports panel mount and through-hole mounting with right angle orientation.
The contacts have a gold flash finish.
Yes, it features a shielded steel shell with nickel plating and grounding indents.
The material flammability rating is UL94 V-0.
The backset spacing is 8.08 mm.
