| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Hole Diameter | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

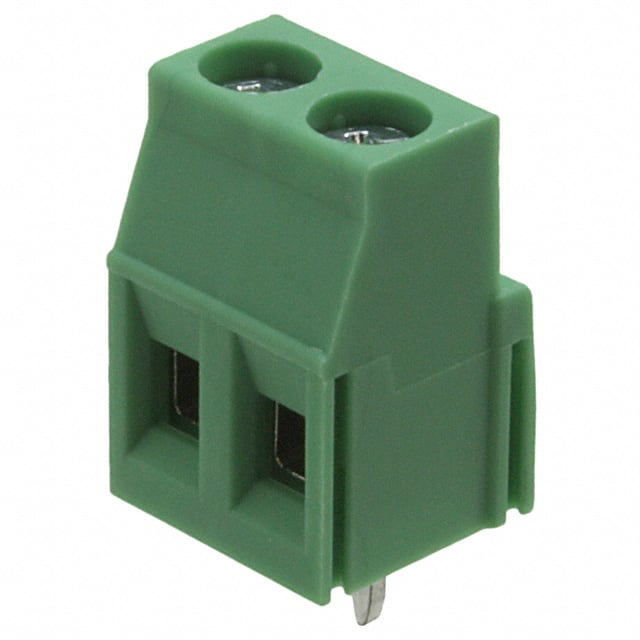

The Phoenix Contact 1888687 (MKDSN 2,5/ 2-5,08) is a 2-position PCB terminal block designed for wire-to-board connections. It features a 5.08mm pitch and uses a screw connection with a rising cage clamp for secure wire termination. The block is rated for a nominal current of 16A and a nominal voltage of 250V, with a maximum load current of 16A using a 2.5mm² conductor.
This terminal block accepts solid and stranded conductors from 0.2mm² to 2.5mm² (24 AWG to 14 AWG). The green insulating body is made of PA (polyamide) with a UL 94 V0 flammability rating. It mounts via through-hole soldering and has a horizontal mating orientation relative to the PCB. Side interlocking allows multiple blocks to be aligned for additional positions.
Electrical ratings include a rated surge voltage of 4 kV and rated voltages up to 630V (II/2). UL/CUL ratings are 300V and 10A for Use Groups B and D. The screw thread is M3 with a tightening torque range of 0.5 to 0.6 Nm. Stripping length is 6.5 mm.
It has 2 positions.
The pitch is 5.08 mm.
The nominal current is 16 A (IEC) and 10 A (UL/CUL Use Group B and D).
The nominal voltage is 250 V (IEC). UL/CUL rated voltage is 300 V for Use Groups B and D.
It uses through-hole mounting (soldering).
It accepts solid and stranded conductors from 24 AWG to 14 AWG (0.2 mm² to 2.5 mm²).
The tightening torque range is 0.5 Nm to 0.6 Nm.
