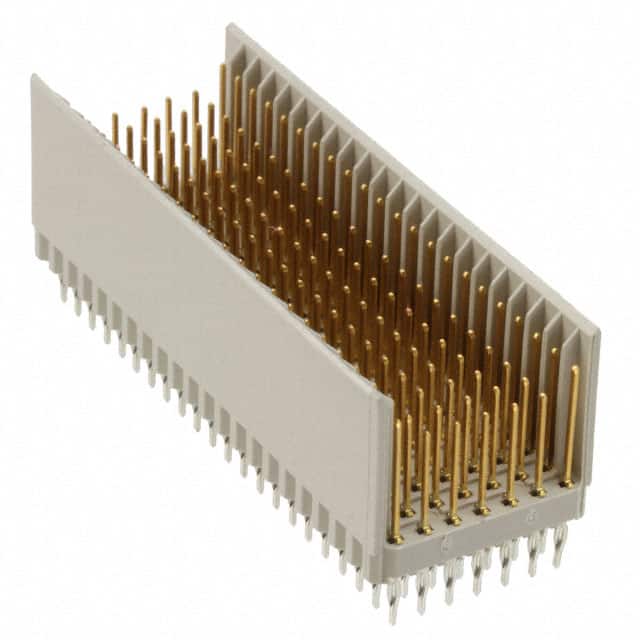

188835-1 Connector header with 154 male pins, 2.00mm pitch, press-fit termination, through hole mounting. Gold contact finish for reliable performance.
Mfr Part #:

188835-1

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
Connector header with 154 male pins, 2.00mm pitch, press-fit termination, through hole mounting. Gold contact finish for reliable performance.
✓ Total Stock: 140 pcs

188835-1 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
114 pcs
On Request
114 pcs On Request 1 On Request On Request N/A On Request On Request
Chanetech ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

188835-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
Termination Style
View Similar Products (0)

188835-1 Description

Short technical summary and product information.

The TE Connectivity 188835-1 is a male pin header connector designed for backplane applications in the CompactPCI form factor (connector usage P2/P5). It features 154 positions consisting of 110 signal pins and 44 ground pins arranged in a 5+2 row configuration with a tight 2.00mm pitch. The termination style is press-fit, enabling solderless installation into plated through holes, while the contacts are finished with gold (0.76µm thickness) for corrosion resistance and high mating cycle durability. The connector is through-hole mounted and fully loaded with all positions occupied. It is RoHS3 and REACH compliant (unverified) with an MSL rating of Level 1.

188835-1 Quick Information

Product Type: Header Connector
Canonical Name: Header, Male Pins, 154 Position (110 + 44 Ground), 2.00mm Pitch, Press-Fit, Through Hole, Gold
Subcategory: Hard Metric Connector

188835-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

188835-1 Features

  • 154 positions with 110 signal and 44 ground.
  • 2.00mm pitch for high-density interconnection.
  • Press-fit termination for solderless assembly.
  • Gold contact finish for reliability.
  • Through-hole mounting for secure attachment.

188835-1 Applications

  • Used in CompactPCI P2/P5 backplane systems.
  • Ideal for telecommunications infrastructure equipment.
  • Suitable for industrial computing and control systems.

188835-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 188835-1 connector have?

154 positions total (110 signal + 44 ground).

What is the pitch of the TE 188835-1 header?

2.00mm (0.079 inch).

What termination style does this connector use?

Press-fit.

What is the contact finish?

Gold with 0.76µm thickness.

What is the mounting type?

Through hole.

What connector style does 188835-1 belong to?

B 22 (CompactPCI P2/P5).

How many rows of contacts?

5 + 2 rows.
