| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

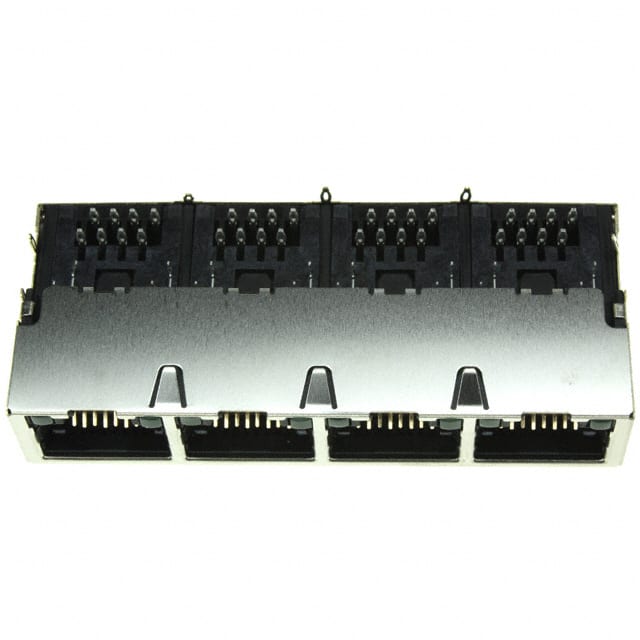

The TE Connectivity 1888251-4 is a modular connector jack designed for high-density networking applications where reliable Ethernet connectivity is required. It features an 8P8C (RJ45) contact arrangement across 4 ports in a single row, making it suitable for multiport panel or edge-mounted designs.
The connector is shielded with an integrated EMI finger for improved electromagnetic interference protection, and the contact terminals are phosphor bronze with a gold finish for reliable signal integrity over repeated mating cycles. The right-angle (90°) orientation and press-fit termination method facilitate efficient board assembly without soldering.
The component is rated Cat5e, supporting data transmission up to 100 MHz, and includes dual green LEDs for port status indication. The mounting options include board edge, panel mount, and through-hole configurations, providing flexibility for various chassis and PCB layouts.
Jack, 8P8C (RJ45, Ethernet).
4 ports in a single row.
Board edge, panel mount, and through hole mounting with right angle orientation.
Yes, shielded with EMI finger.
Press-fit.
Cat5e.
Yes, dual green LEDs are included for each port.
