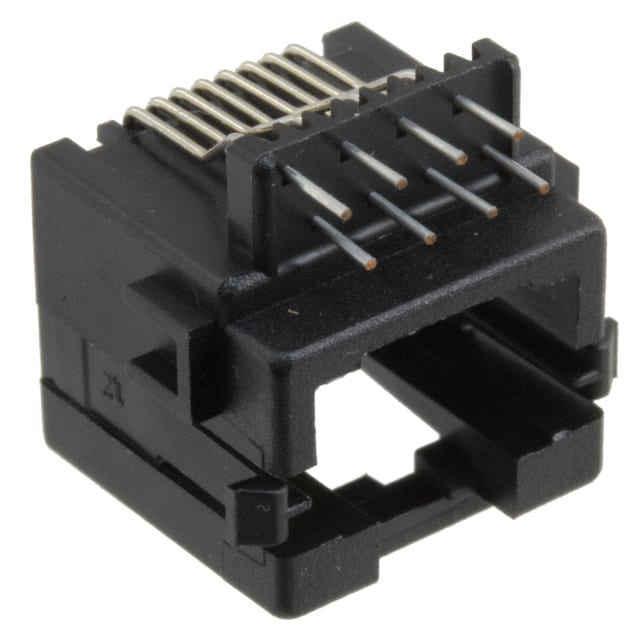

188728-1 TE Connectivity 188728-1 is a modular jack with 8P8C configuration, unshielded, through hole bottom entry mounting, and vertical orientation. It features phosphor bronze contacts with gold finish and panel stops.
Mfr Part #:

188728-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 188728-1 is a modular jack with 8P8C configuration, unshielded, through hole bottom entry mounting, and vertical orientation. It features phosphor bronze contacts with gold finish and panel stops.
✓ Total Stock: 7,166 pcs

188728-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,166 pcs
On Request
7166 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

188728-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

188728-1 Description

Short technical summary and product information.

The TE Connectivity 188728-1 is a modular connector jack designed for 8P8C (RJ45) applications. It is unshielded and features a through hole bottom entry mounting style with solder termination. The jack is vertically oriented with a user selectable tab direction, providing flexibility in panel installation.



Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections. The jack includes panel stops for secure mounting. It is rated for Cat3 applications, suitable for voice and low-speed data transmission.



This component does not contain an LED indicator. The housing is designed for single port, single row configurations. The part is RoHS3 compliant (unverified), with an MSL of 1 (unlimited) and REACH unaffected status (unverified).

188728-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, 8P8C, Unshielded, Through Hole, Vertical
Subcategory: 8P8C (RJ45) Jack

188728-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

188728-1 Features

  • 8P8C (RJ45) modular jack configuration.
  • Unshielded design for basic applications.
  • Through hole bottom entry mounting.
  • Vertical orientation with user selectable tab.
  • Phosphor bronze contacts with gold finish.

188728-1 Applications

  • Voice and data communication equipment.
  • Low-speed networking (Cat3) applications.
  • Panel-mounted modular jacks in enclosures.
  • Telecommunication and office equipment.

188728-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8 positions (8P8C, RJ45 Ethernet).

What is the mounting type?

Through hole, bottom entry.

Is this jack shielded?

No, it is unshielded.

What is the orientation?

Vertical.

What is the contact material and finish?

Phosphor bronze contacts with gold finish.

What features does this jack have?

Panel stops.

What is the category rating?

Cat3.
