| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,700 pcs
|
11700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,719 pcs
|
7719 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Positions Loaded | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

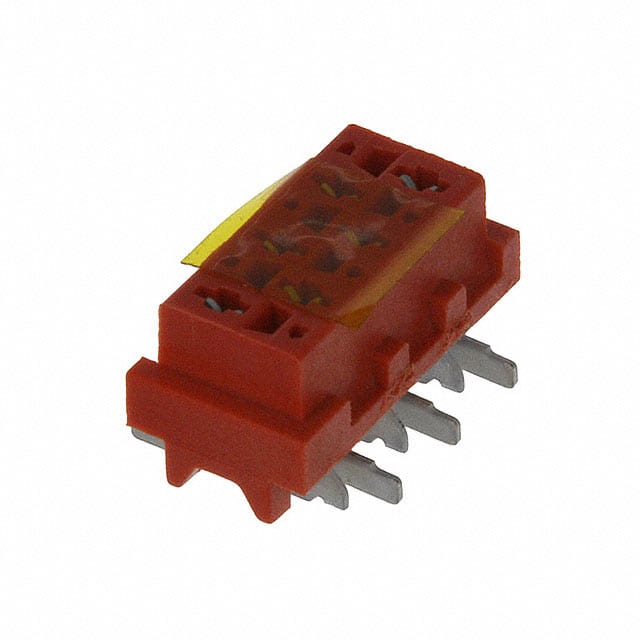

The TE Connectivity 188275-6 is a 6 position receptacle connector designed for board-to-board or cable applications. It features a dual row configuration with 2.54mm pitch and row spacing, surface mount solder termination, and push-pull fastening. The contacts are forked type with tin finish, and the red insulation is rated UL94 V-0.
Electrical ratings include 100VDC maximum voltage and an operating temperature range of -40°C to 105°C. The connector is RoHS and REACH compliant (unverified) with MSL 1. The compact design with 5.30mm insulation height suits space-constrained designs.
This connector is suitable for low voltage signal interconnections in industrial, consumer, and automotive electronics where reliable surface mount assembly is required. The tin contact finish provides good solderability and corrosion resistance for general purpose use.
6 positions, all loaded.
2.54 mm (0.100") pitch and row spacing.
100 VDC.
Surface mount with solder termination.
Tin.
-40°C to 105°C.
UL94 V-0.
