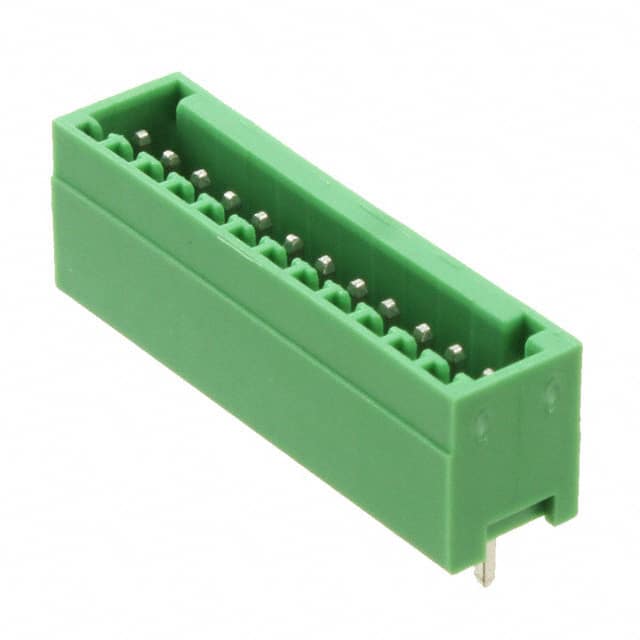

1881655 Phoenix Contact 1881655 is a 12-position terminal block header with male pins, shrouded on 4 sides, vertical orientation, 2.50mm pitch, and through hole solder termination.
Mfr Part #:

1881655

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1881655 is a 12-position terminal block header with male pins, shrouded on 4 sides, vertical orientation, 2.50mm pitch, and through hole solder termination.
✓ Total Stock: 29 pcs

1881655 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1881655 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1881655 Description

Short technical summary and product information.

The Phoenix Contact 1881655 is a 12-position terminal block header designed for reliable wire-to-board connections in industrial and commercial equipment.



This shrouded (4 side) header features male pins with a Tin contact mating finish and a vertical mounting orientation. It supports a current rating of 4 A and a voltage rating of 125 V. The 2.50mm pitch allows for compact PCB layouts while maintaining adequate spacing.



The component uses through hole mounting with solder termination, providing a robust mechanical bond to the printed circuit board. The green housing offers visual identification for assembly and inspection.



Designed for use with matching terminal block plugs, this header is suitable for control systems, instrumentation, and power distribution applications where secure and organized wiring is required.

1881655 Quick Information

Product Type: Terminal Block Header
Canonical Name: Header, Male Pins, Shrouded, Through Hole, 12 Positions, 1 Level, 2.50mm Pitch, Vertical, Solder Termination, Tin Contact Finish, Green
Subcategory: Headers

1881655 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1881655 Features

  • Through hole solder termination for robust PCB mounting.
  • 12 positions with 2.50mm pitch spacing.
  • Vertical shrouded header protects male pins.
  • Rated for 4 A and 125 V operation.
  • Tin contact finish for reliable connections.

1881655 Applications

  • Ideal for industrial control panel wiring.
  • Used in building automation and HVAC systems.
  • Suitable for power distribution in small equipment.
  • Connects sensor and actuator signals in machinery.

1881655 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

12 positions, all on a single level.

What is the pitch of the Phoenix Contact 1881655?

2.50mm (0.098 inches).

What is the voltage and current rating?

Voltage rating 125 V, current rating 4 A.

What type of mounting does it use?

Through hole mounting with solder termination.
