| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

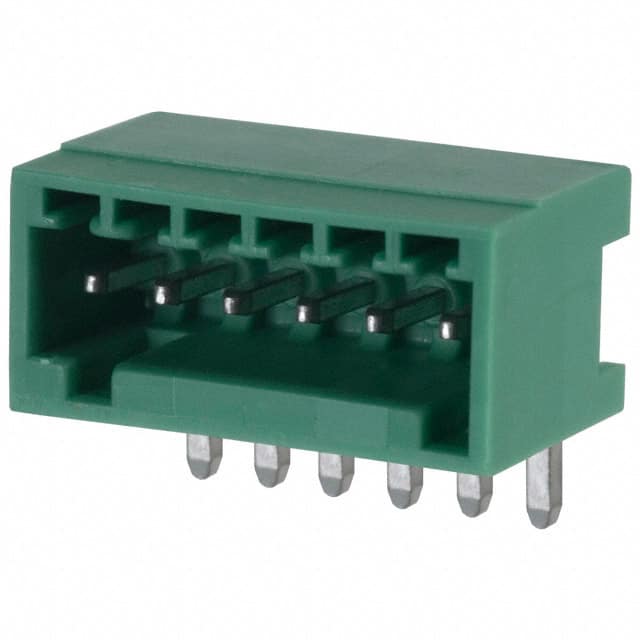

The Phoenix Contact 1881480 is a 6 position terminal block header with male pins in a shrouded (4 side) design. It features a 2.5mm pitch and a right angle orientation, making it suitable for compact PCB layouts where space is limited. The header is rated for 125V and 4A, with tin-plated contacts for reliable solder connections.
This through hole component is designed for single level use with 6 positions per level. The green housing provides visual identification for wire-to-board applications. The shrouded design offers protection for the pins during handling and mating.
Typical applications include industrial control systems, building automation, and power distribution where secure and organized wire connections are required. The 2.5mm pitch allows for higher density wiring compared to larger pitch alternatives.
The header has 6 positions on a single level.
The pitch is 2.50mm (0.098 inches).
Rated for 125V and 4A.
Through hole mounting with solder termination.
Right angle (90 degree) orientation.
Tin finish on the contact mating surface.
Green.
