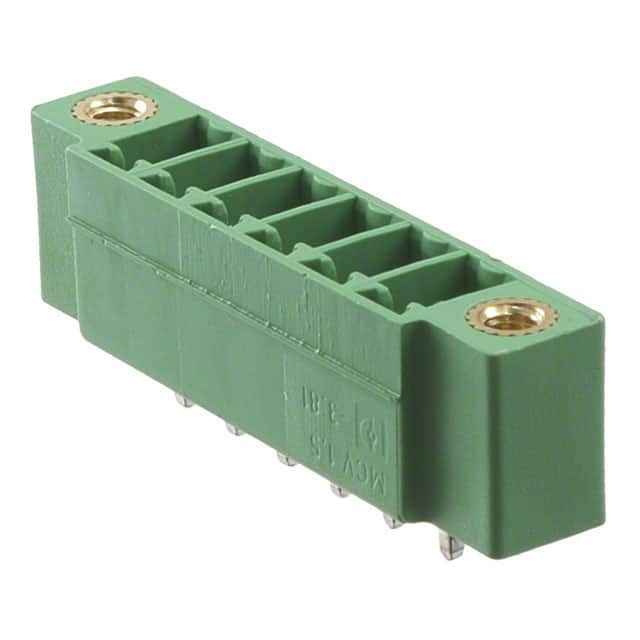

1879324 Phoenix Contact 1879324 is a 6-position, 3.81mm pitch terminal block header with shrouded male pins. Rated for 8 A and 300 V (UL/CUL Use Group B and D), with a through hole press-fit termination.
Mfr Part #:

1879324

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1879324 is a 6-position, 3.81mm pitch terminal block header with shrouded male pins. Rated for 8 A and 300 V (UL/CUL Use Group B and D), with a through hole press-fit termination.
✓ Total Stock: 300 pcs

1879324 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1879324 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1879324 Description

Short technical summary and product information.

The Phoenix Contact EMCV 1,5/ 6-GF-3,81 (order number 1879324) is a 6-position vertical terminal block header designed for reliable printed circuit board connections. It features a 3.81 mm pitch and male pins with tin-plated contact mating surfaces.



This shrouded header (4-side) is rated for a nominal current of 8 A and offers multiple voltage ratings depending on the application standard: 160 V (II/2 and III/2) as per EN-VDE and 300 V for UL/CUL Use Groups B and D. The insulating material is PBT with a flammability class of UL94 V0.



The header uses a through hole press-fit termination style and includes a mating and mounting flange for secure connector locking. The overall length is 7.25 mm with pin dimensions of 0.8 x 0.8 mm. It is packaged in standard trays of 50 pieces.

1879324 Quick Information

Product Type: Terminal Block Header
Series: EMCV 1,5/..-GF
Canonical Name: Phoenix Contact EMCV 1,5/ 6-GF-3,81 Header, Male Pins, Shrouded (4 Side)
Subcategory: Terminal Block Header

1879324 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1879324 Features

  • 6-position, 3.81mm pitch header.
  • Rated for 8 A continuous current.
  • 300 V UL rated (Use Groups B/D).
  • Press-fit through hole termination.
  • UL94 V0 PBT insulating material.

1879324 Applications

  • Industrial control panel wiring.
  • Building automation terminal blocks.
  • Power supply PCB connections.
  • Automation equipment I/O interfaces.

1879324 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 6 positions arranged in 1 level, with 6 positions per level.

What is the pitch of the 1879324 header?

The pitch is 3.81 mm.

What is the voltage rating of the 1879324?

Multiple voltage ratings apply: 160 V (III/2), 250 V (II/2) per EN-VDE, and 300 V for UL/CUL Use Groups B and D.

What is the current rating for this header?

The nominal current rating is 8 A, with a maximum load current also rated at 8 A.

What mounting type does this header use?

This header uses a through hole mounting type with a press-fit termination style.
