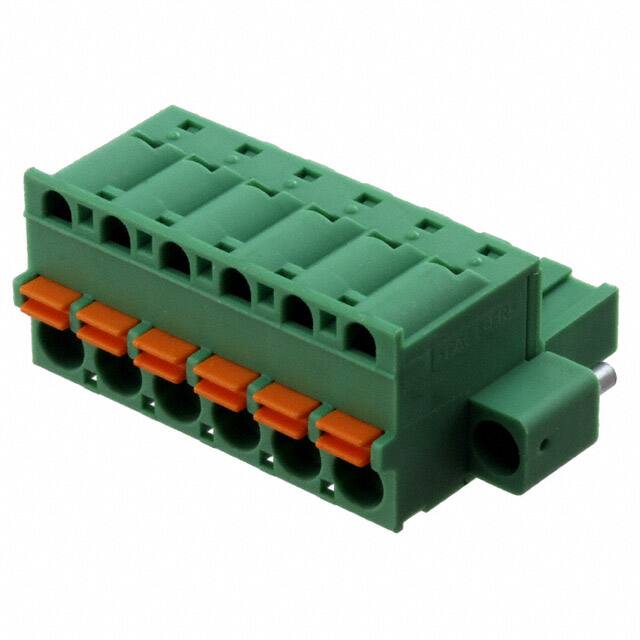

1873249 Phoenix Contact 1873249 is a 6-position terminal block plug with female sockets, 5.08mm pitch, rated 12A and 300V, featuring screwless push-in spring connection.
Mfr Part #:

1873249

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1873249 is a 6-position terminal block plug with female sockets, 5.08mm pitch, rated 12A and 300V, featuring screwless push-in spring connection.
✓ Total Stock: 23 pcs

1873249 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1873249 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1873249 Description

Short technical summary and product information.

The Phoenix Contact 1873249 is a 6-position plug component from the FKC 2.5/..-STF series. It features female sockets arranged in a single level with a 5.08mm pitch. The termination method is screwless push-in spring (leg spring) for fast and tool-free conductor connection. It accepts solid or stranded conductors with ferrules from 0.2 to 2.5mm² (24-12 AWG) with a stripping length of 10mm.



Electrically, the plug is rated for a nominal current of 12A and a nominal voltage of 250V. It meets UL/CSA requirements with a 300V rating (Use Group B/D) and IEC ratings of 320V (III/2) and 630V (II/2). The rated surge voltage is 4kV. The insulating material is polyamide (PA) with a flammability class of V0 per UL 94.



Mechanically, the plug is designed for free hanging (in-line) mounting. It includes a mating flange and retention latches on the non-wire side for secure connection to mating headers. The contact mating finish is tin. The product color is green. Packing unit is 1 piece with a minimum order quantity of 1.

1873249 Quick Information

Product Type: Terminal Block Plug
Series: FKC 2.5/..-STF
Canonical Name: Phoenix Contact FKC 2.5/6-STF-5.08 6 Position Plug, Female Sockets, 5.08mm Pitch
Subcategory: Headers, Plugs and Sockets

1873249 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1873249 Features

  • 6 positions with 5.08mm pitch.
  • Screwless push-in spring termination.
  • Rated 12A nominal current.
  • Rated 300V UL voltage.
  • Free hanging in-line mounting.

1873249 Applications

  • Used in industrial control panels.
  • Ideal for wire-to-board connections.
  • Suitable for signal and power distribution.
  • Common in automation systems.

1873249 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1873249 have?

6 positions.

What is the pitch of the 1873249?

5.08mm.

What is the current rating of the 1873249?

12A nominal.

What is the voltage rating of the 1873249?

300V UL, 320V III/2, 630V II/2, 250V nominal.

What is the mounting type of the 1873249?

Free hanging (in-line).

What termination style does the 1873249 use?

Screwless - leg spring, push-in spring.

What wire gauge range does the 1873249 accept?

0.2-2.5mm² (24-12 AWG).
