| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

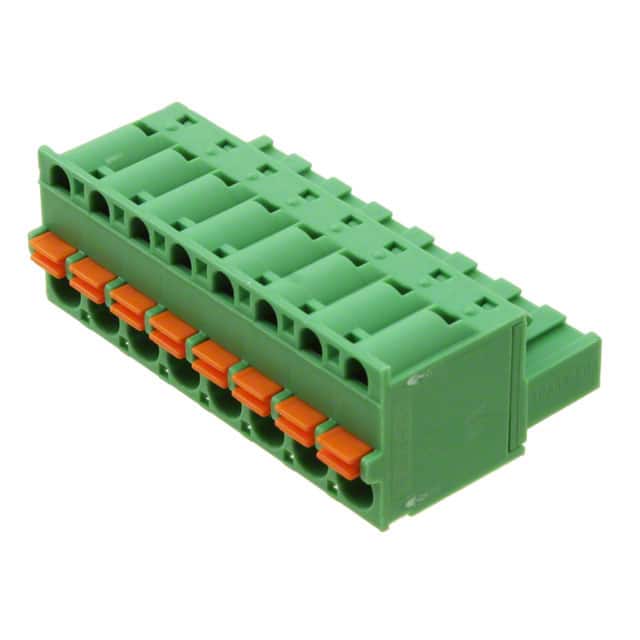

The Phoenix Contact 1873113 is a terminal block plug with 8 positions arranged in a single level at a 5.08mm pitch. It features a free hanging (in-line) mounting type and a screwless leg spring, push-in spring termination style for quick and reliable wire connections. The plug accepts wire gauges from 0.2 to 2.5mm² and is rated for 300V and 10A. The housing is green and the contact mating finish is tin. Retention latches on the non-wire side provide secure mating with the header. The wire entry is straight (180°). This plug is designed for use in industrial control, automation, and power distribution applications where a compact and tool-less wiring solution is needed.
It has 8 positions arranged in a single level.
The pitch is 5.08mm (0.200 inches).
It is rated for 300V and 10A.
It uses screwless leg spring, push-in spring termination.
Free hanging (in-line) mounting.
