| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

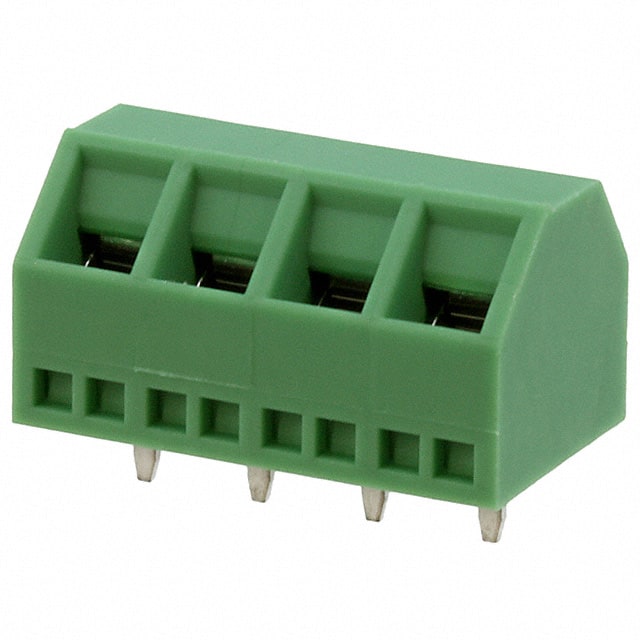

The Phoenix Contact 1869237 is a 4-position wire to board terminal block with a single level. It features a 5.08mm pitch and a 55° (125°) mating orientation relative to the board. The terminal block uses a screw - rising cage clamp wire termination, suitable for wire gauges from 14 to 30 AWG. It is rated for 10A current and 300V voltage. The component is through hole mounted and comes in a green color. This terminal block is designed for reliable wire connections in industrial control and automation applications. The rising cage clamp mechanism ensures secure wire retention. The 5.08mm pitch is common for many PCB layouts. The 55° angle allows for space-saving board designs. Compliance with RoHS and REACH is indicated but unverified. The part is cross-referenced as DigiKey 277-5825-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.24 | $2.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5.08mm (0.200 inches).
10A.
300V.
Through hole.
14-30 AWG.
Screw - rising cage clamp.
