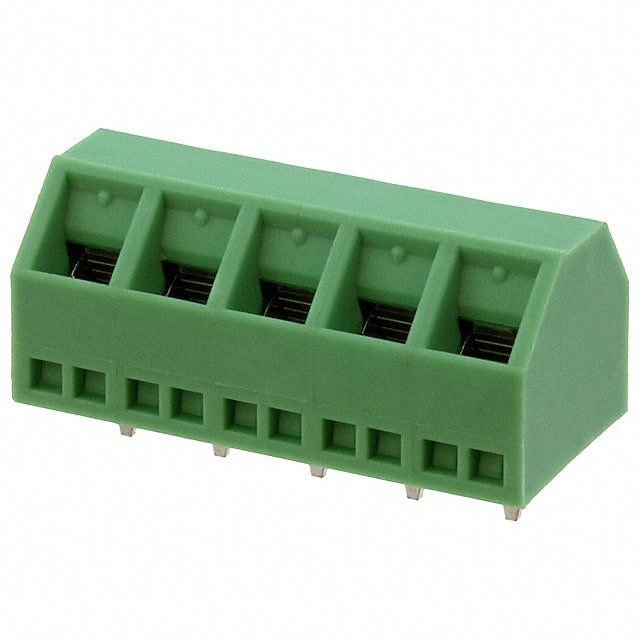

The Phoenix Contact SMKDSN 1,5/5 (1869091) is a 5-position PCB terminal block with a 5 mm pitch. It features a screw connection with a rising cage clamp and a mating orientation of 55° (125°) angle with the board. The terminal block is rated for a nominal current of 13.5 A and a nominal voltage of 400 V. The housing is made of green PA (polyamide) insulating material with a flammability rating of UL 94 V0.
This terminal block is designed for through-hole soldering and accepts wire gauges from 14-30 AWG (solid and stranded cross sections 0.14 mm² to 1.5 mm²). The screw thread is M3 with a tightening torque range of 0.5 Nm to 0.6 Nm. The stripping length is 6 mm. Pin dimensions are 0.5 x 1 mm with a hole diameter of 1.3 mm.
The rated surge voltage is 4 kV across multiple use groups. For UL/CUL use group B and D, the rated voltage is 300 V and rated current is 10 A. The product is RoHS3 compliant and REACH unaffected according to existing database records.
The pitch is 5.00 mm.
It has 5 positions.
The UL/CUL rating is 10 A for both use group B and D. The nominal current per IEC is 13.5 A.
UL/CUL rated voltage is 300 V. IEC rated voltage varies: 250 V (III/3), 400 V (III/2), 630 V (II/2).
Through hole (soldering).
Solid and stranded wire: 0.14 mm² to 1.5 mm² (26 to 16 AWG). Also listed as 14-30 AWG.
0.5 Nm to 0.6 Nm.
